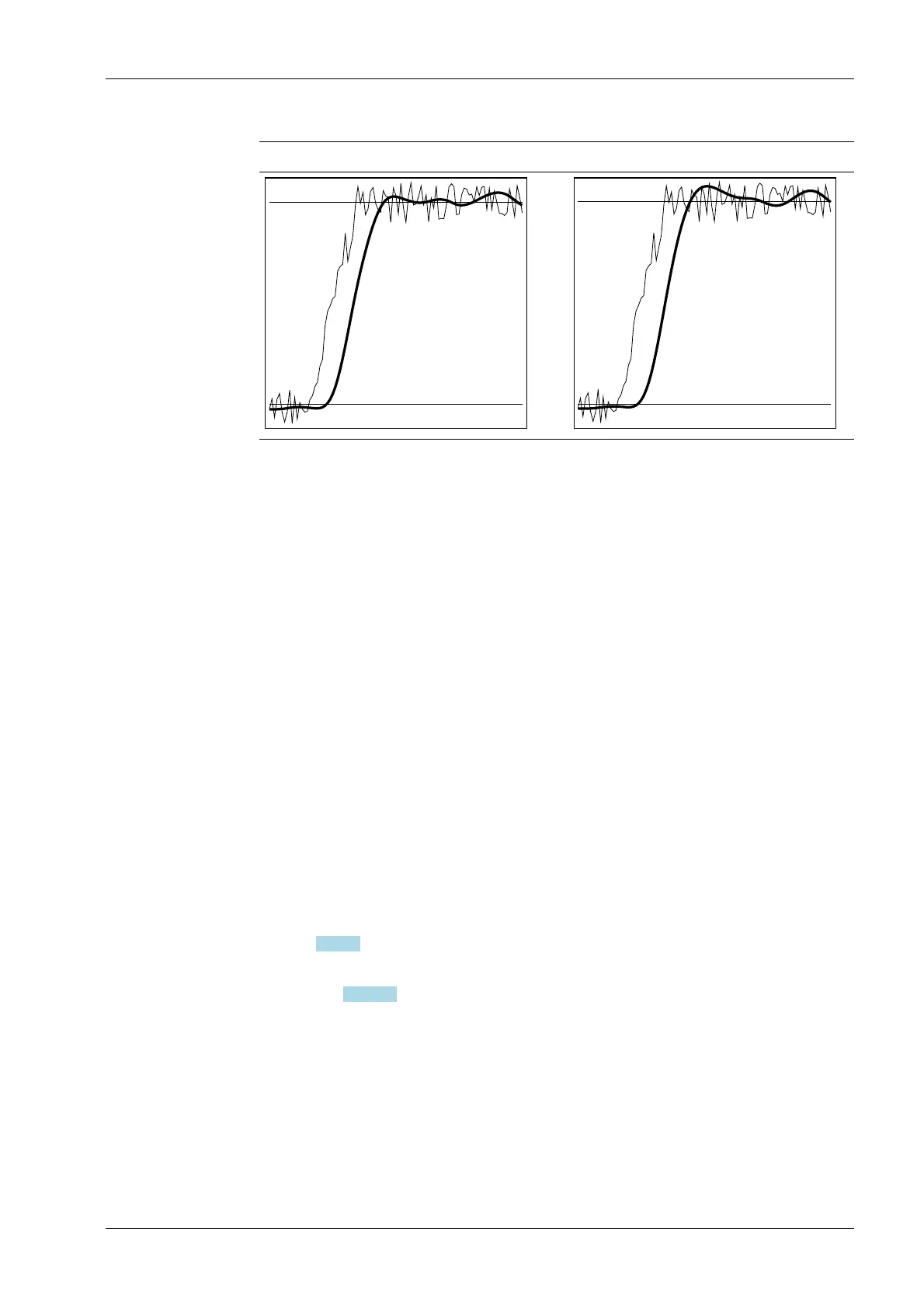

Butterworth filter Tschebyscheff filter
A digital filter can be switched on only with the measuring time set to <160 ms.
If no particularly frequent fluctuations are expected in ongoing operation, the following
settings are recommended:
[Measuretime]: <160 ms
[Digital filter]: aperiod.
[Fcut]: 2.00 Hz
[Fcut]
This line only is shown if the digital filter is switched on.
The smaller the cut-off frequency, the slower the measurement and the more stable the
measurement result.
The cut-off frequency can be specified for the low pass filter.
Valid range: 0.1…2.5 Hz.
The available options depend on the measuring time.
[External supply]
When the load cells are connected to an external supply, it is possible to switch to ≤8 V, to
tune Sense voltage monitoring to the lower supply voltage.
Selection: below or equal 8
V (≤8 V), <above 8
V> (>8
V)
[Test mode]
With [absolute], the test value is determined when the test is called.
With [relative], the deviation from the initially stored test value is displayed; see
Chapter 7.14.12.
[W&M]
See Chapter 7.14.15.1.
If [OIML] was selected, the device needs to warm up for 30 seconds.
[Standstill time]
The parameters [Standstill time] and [Standstill range]are used to define the stability of
the scale (stable balance).
The input for the parameter [Standstill time] is expressed in seconds.
Valid range: 0.00…2 s
If the tome is set to "0" there is no check. The standstill time must not be less than the
measuring time.
7 Getting started X3 Process Indicator PR 5410
Minebea Intec EN-181
