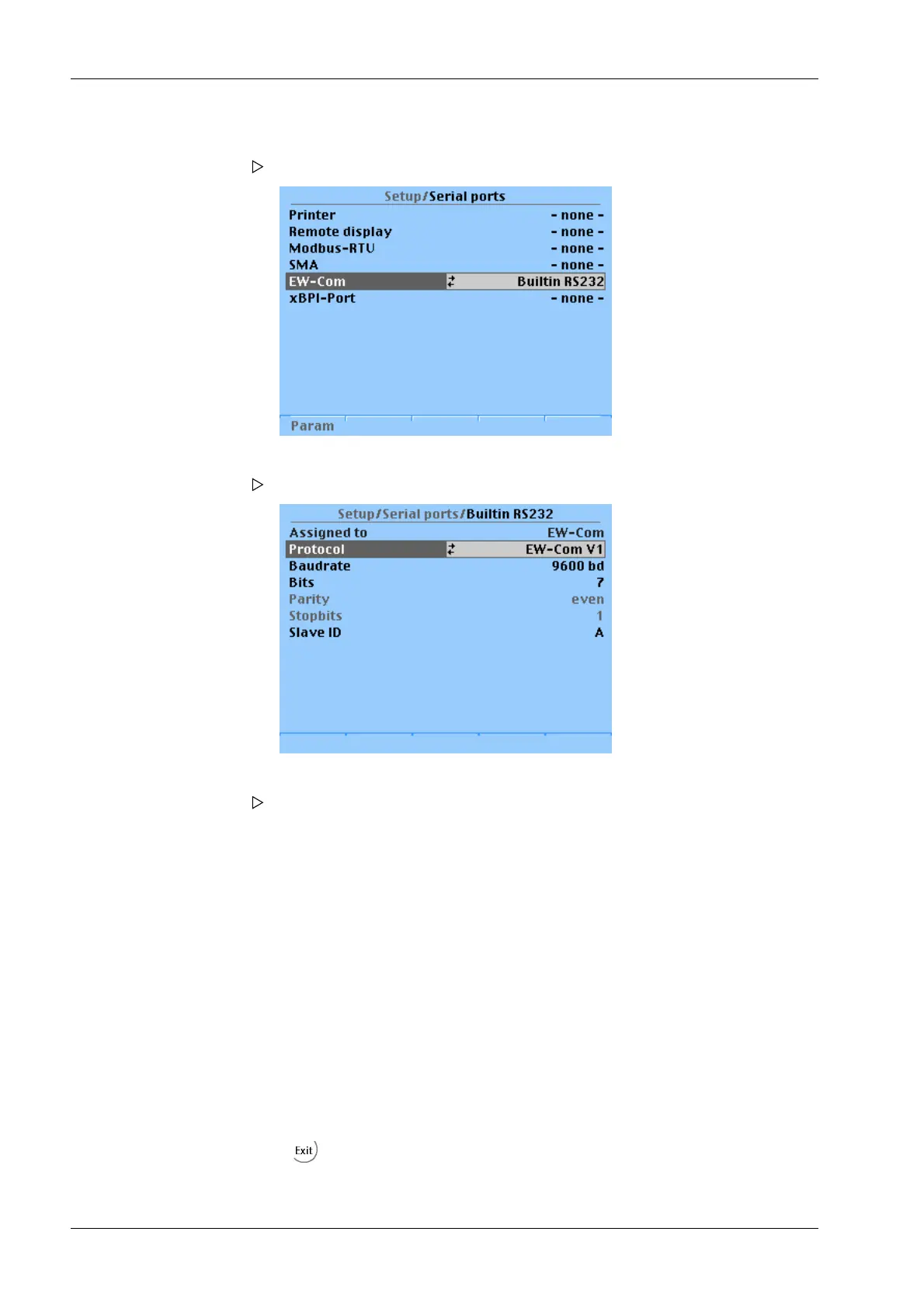

2. Select the desired interface and confirm.
The selected interface is displayed.
3. Press the [Param] softkey to set the parameters.
The following window opens:
4. Select [Protocol] and confirm.
V1 = for old communication programs
V2 = for formulation controller
V3 = for OPC
A selection window opens.
5. Confirm the desired selection.
6. Select [Baudrate] and confirm.
A selection window opens.
7. Select the desired transmission speed and confirm.
8. Select [Bits] and confirm.
A selection window opens.
9. Select the desired bit quantity and confirm.
10. Select [Slave ID] and confirm.
11. Enter the address (A–Z) and confirm.
12. Press two times to exit the menu and save.
X3 Process Indicator PR 5410 7 Getting started
EN-234 Minebea Intec
