SECURITY MANAGEMENT 3-37
iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING GGS-000547-01E
5. Click the OK button to proceed.

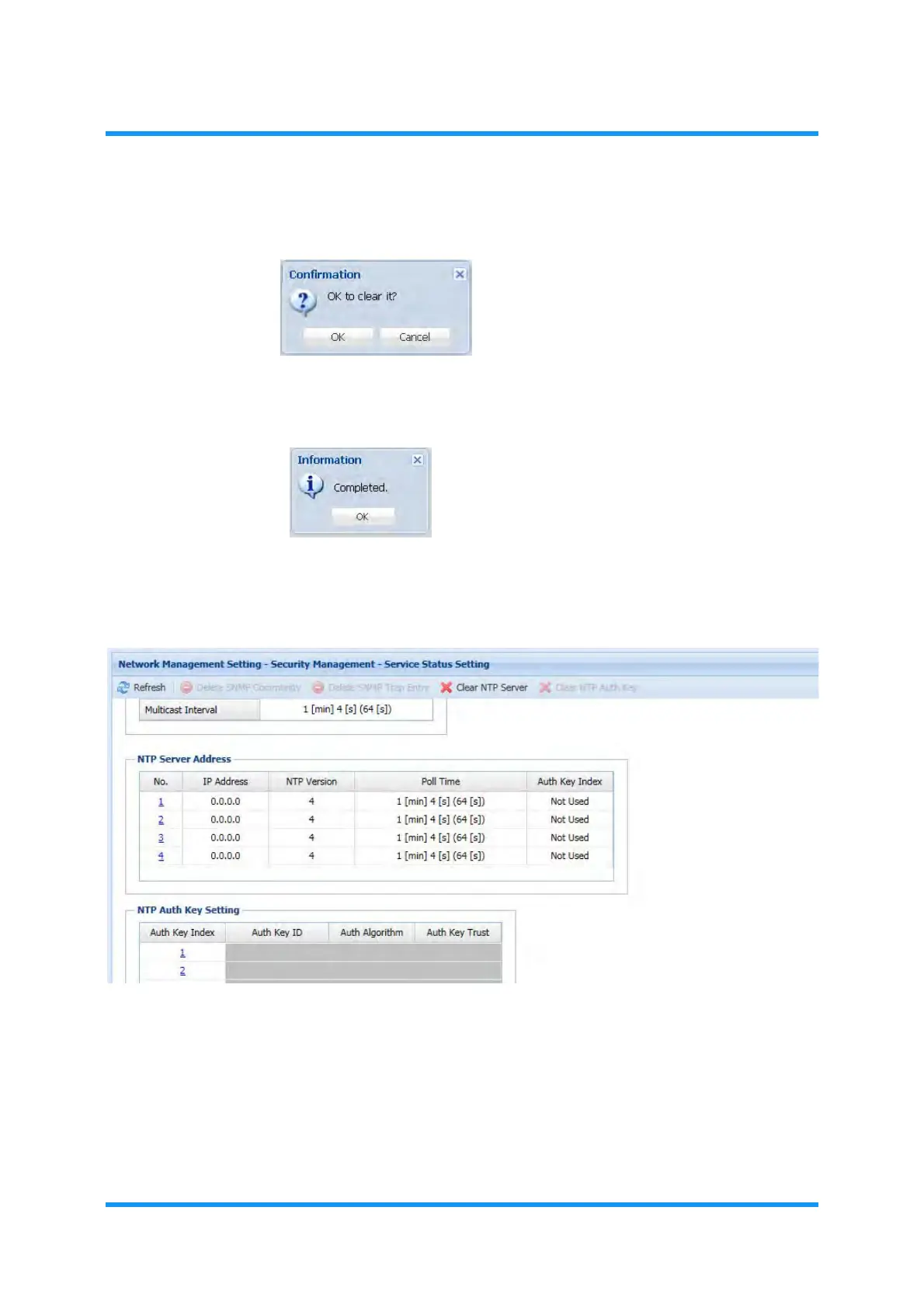

Figure 3-38 Confirmation Dialog Box
6. Information dialog box appears. Click the OK button to proceed.
Figure 3-39 Information Dialog Box
7. The Service Status Setting window updates the information. Confirm that the
selected NTP Server Address information has been removed.
Figure 3-40 Service Status Setting Window (NTP Server Address)
This step ends the procedure.
