4.3.2 Link OAM Loopback
To operate the Link OAM Loopback, the Link OAM Mode must be enabled and be
active. Check or enable the Link OAM function referring to the
Set Network and
System Provisioning manual, 8.6.4 LINK OAM Setting.

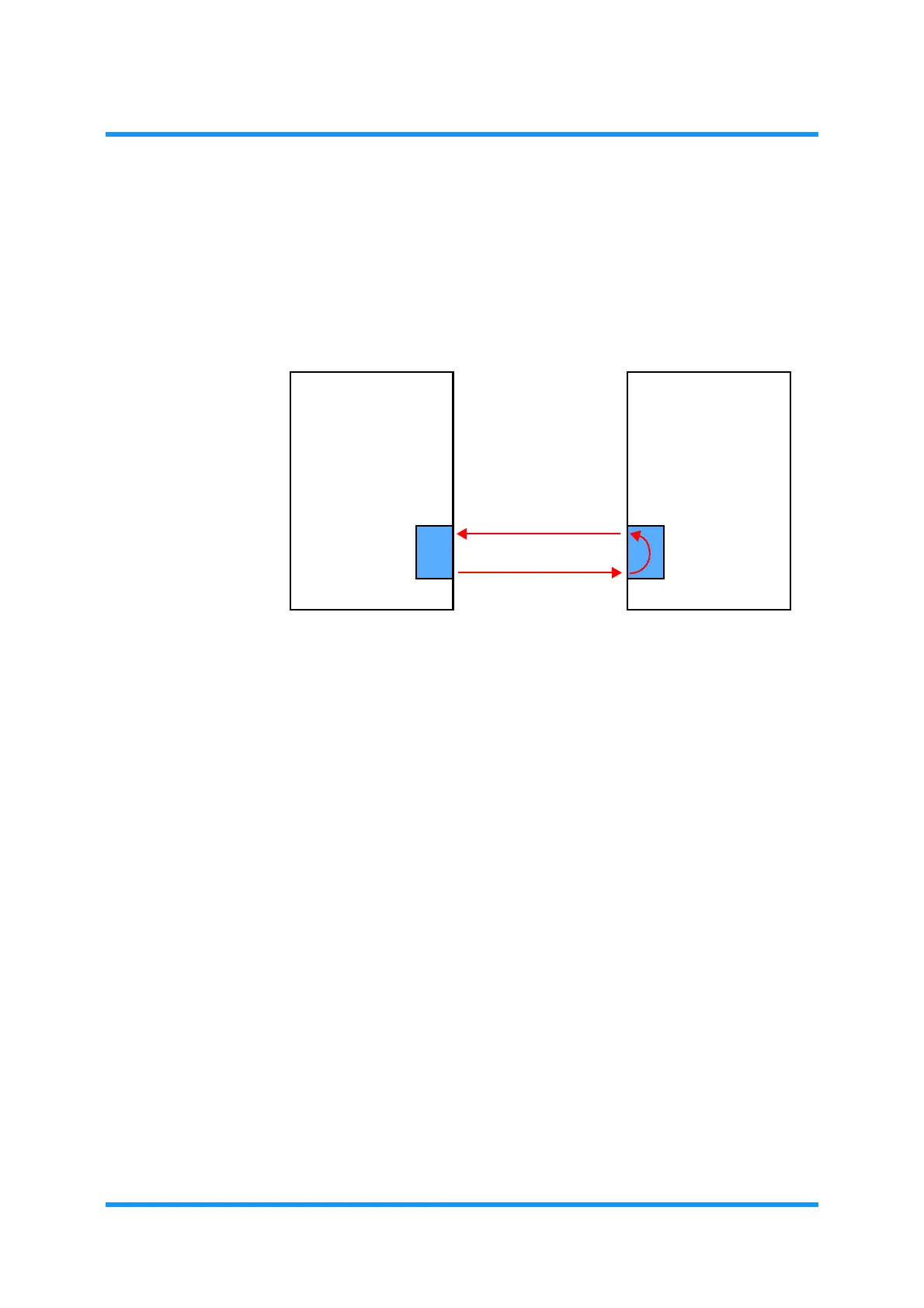

Figure 4-8 Link OAM Loopback Configuration
Procedure 4-3
1. Click the Maintenance tool button on the tool bar of the WebLCT to put the
system into the Maintenance Mode. The
MAINT indicator on the tool bar
changes to orange.
2. In the
MENU frame on the left, expand the Maintenance Control, then its
submenu
Loopback Control to select Link OAM Loopback Control.
The
Link OAM Loopback Control window appears.
iPASOLINK EX/A iPASOLINK EX/A
ETHERNET PORT ETHERNET PORT
LOOPBACK
