NEC iPASOLINK EX Advanced - Port Isolate Setting

8-194 Set ETH Function
GGS-000547-01E iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING
8.14 Port Isolate Setting
Procedure 8-60
1. Launch and log in to WebLCT.
2. In the MENU frame on the left, expand Provisioning, then submenu ETH
Function Setting
to select Port Isolate Setting. The Port Isolate Setting
window appears.
3. Click the Port number of the target.

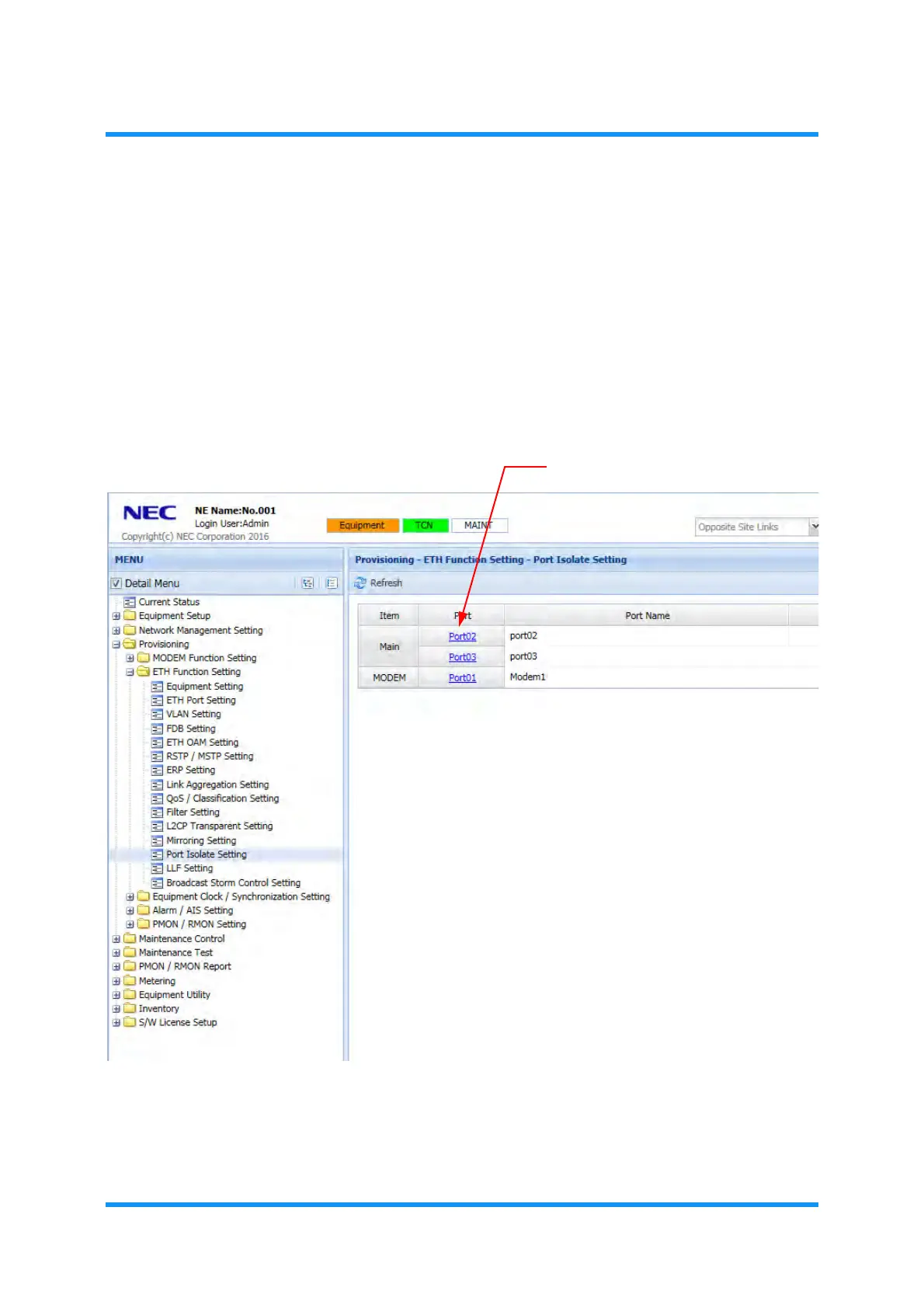

Figure 8-270 Port Isolate Setting Window
Port Isolate Setting
option window appears.
Port number
