NEC iPASOLINK EX Advanced - Monitoring Points; PM Items

ROUTINE MAINTENANCE 3-13
iPASOLINK EX Advanced: OPERATION & MAINTENANCE GGS-000548-01E
3.3.4.1 PM Items
3.3.4.2 Monitoring Points

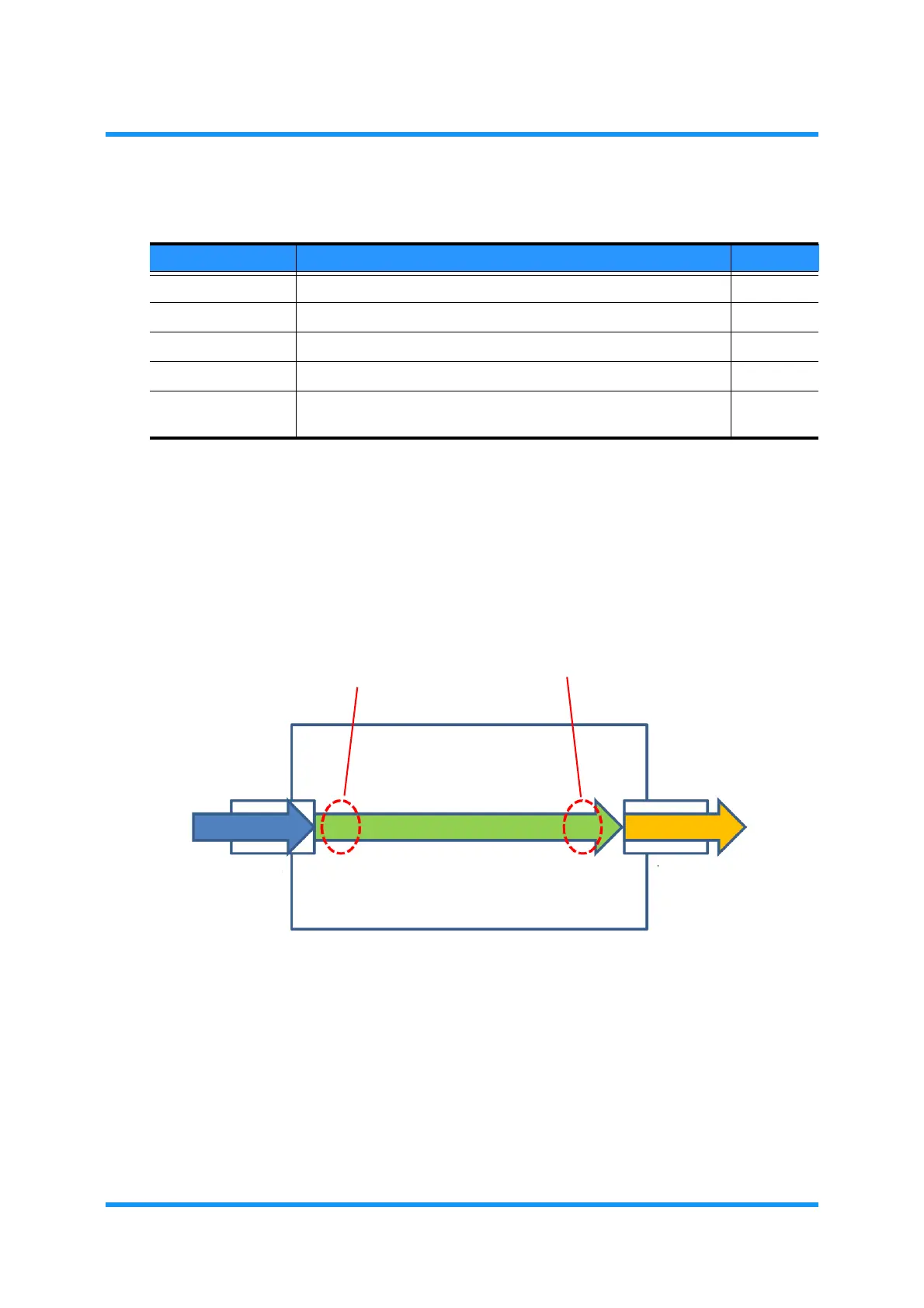

Figure 3-12 Monitoring Point for VLAN Counter
Table 3-4 PM Items for Ethernet Interface
Monitor Type Description Spec.
VLAN TX Octets The total number of octets transmitted on the interface. ——
VLAN RX Octets The total number of octets received on the interface. ——
VLAN TX Frames The total number of transmitted VLAN frames. ——
VLAN RX Frames The total number of received VLAN frames.
VLAN RX QoS
Discard Frame
The total number of received VLAN frames that have been
discarded by the policing function per VLAN.
VLAN 200
PORT 1
INGRESS
VLAN 100
VLAN 300
EGRESS
PORT 2
PORT 1 / VLAN 200
MONITORING POINT
PORT 2 / VLAN 200
MONITORING POINT
