CONNECT CABLES 5-7
iPASOLINK EX Advanced: INSTALLATION GGS-000546-01E
5.5 LAN Cables
5.5.1 DCN (PoE) Port (RJ-45)
A LAN Cable to connect with iPASOLINK EX/A requires the waterproof process on
its connection point. Following shows the connecting method of the LAN Cable
(Electric) and the waterproofing cap:
Reference
1. Uncover the protected port. Waterproofing cap can be off by turning it counter-
clockwise.

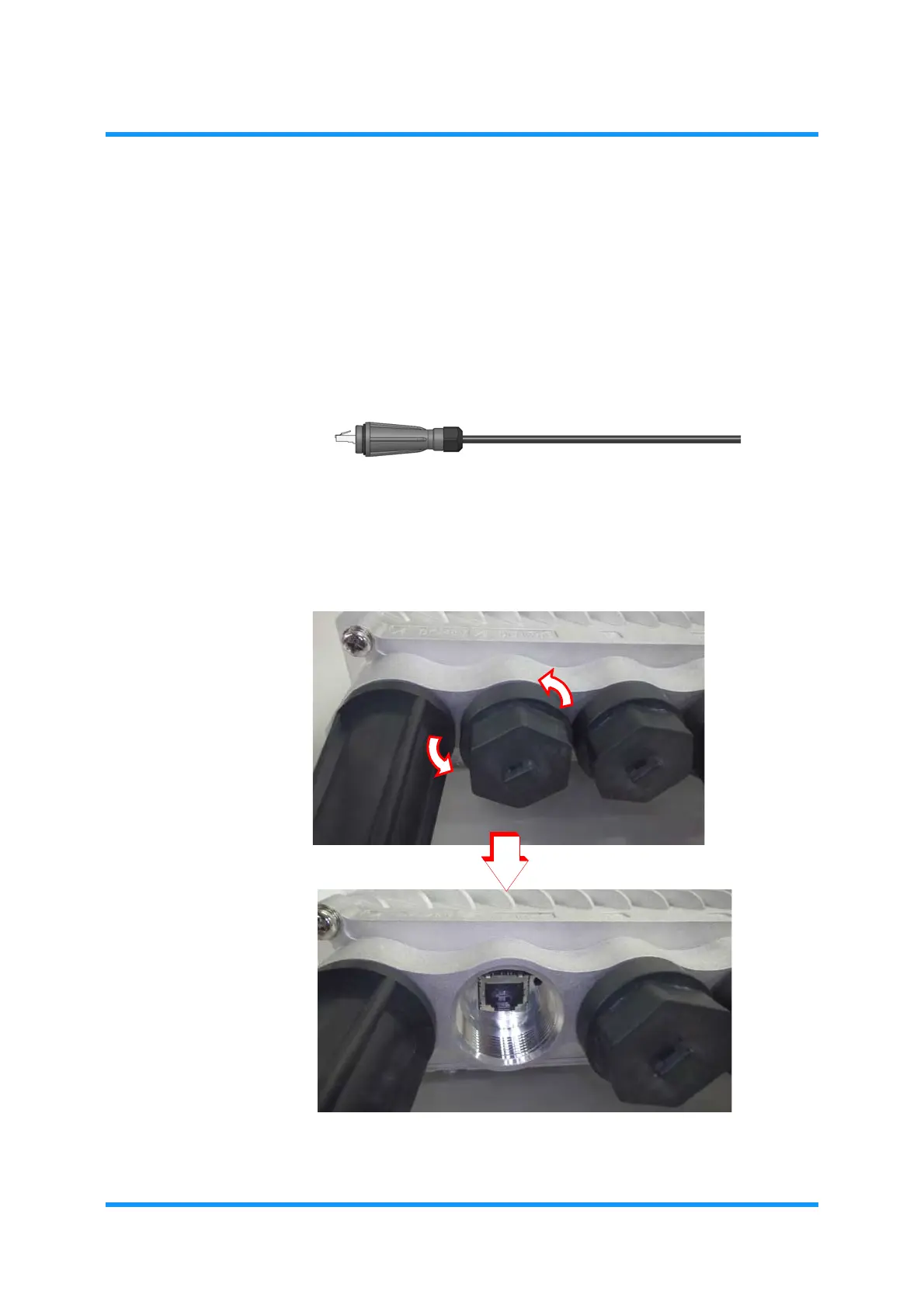

Figure 5-9 Remove Waterproofing Cap from DCN (PoE) Port
To Next Page
