4.2 Mount iPASOLINK EX/A for 1+0 System
4.2.1 Set Antenna Brackets to Pole
Antenna Bracket’s position to the pole differ depending on the use of the equipment.
NOTE:
iPASOLINK EX/A should be mounted as pointing its one of two
Polarization. The opposing-site iPASOLINK to which this iPASOLINK is
to be facing should point the same Polarization Label.
4.2.1.1 Polarization: Vertical
V mark is found on the grip. Place this V mark on top. For the Vertical Polarization,
either side to the pole is available to be mounted (no restrictions):

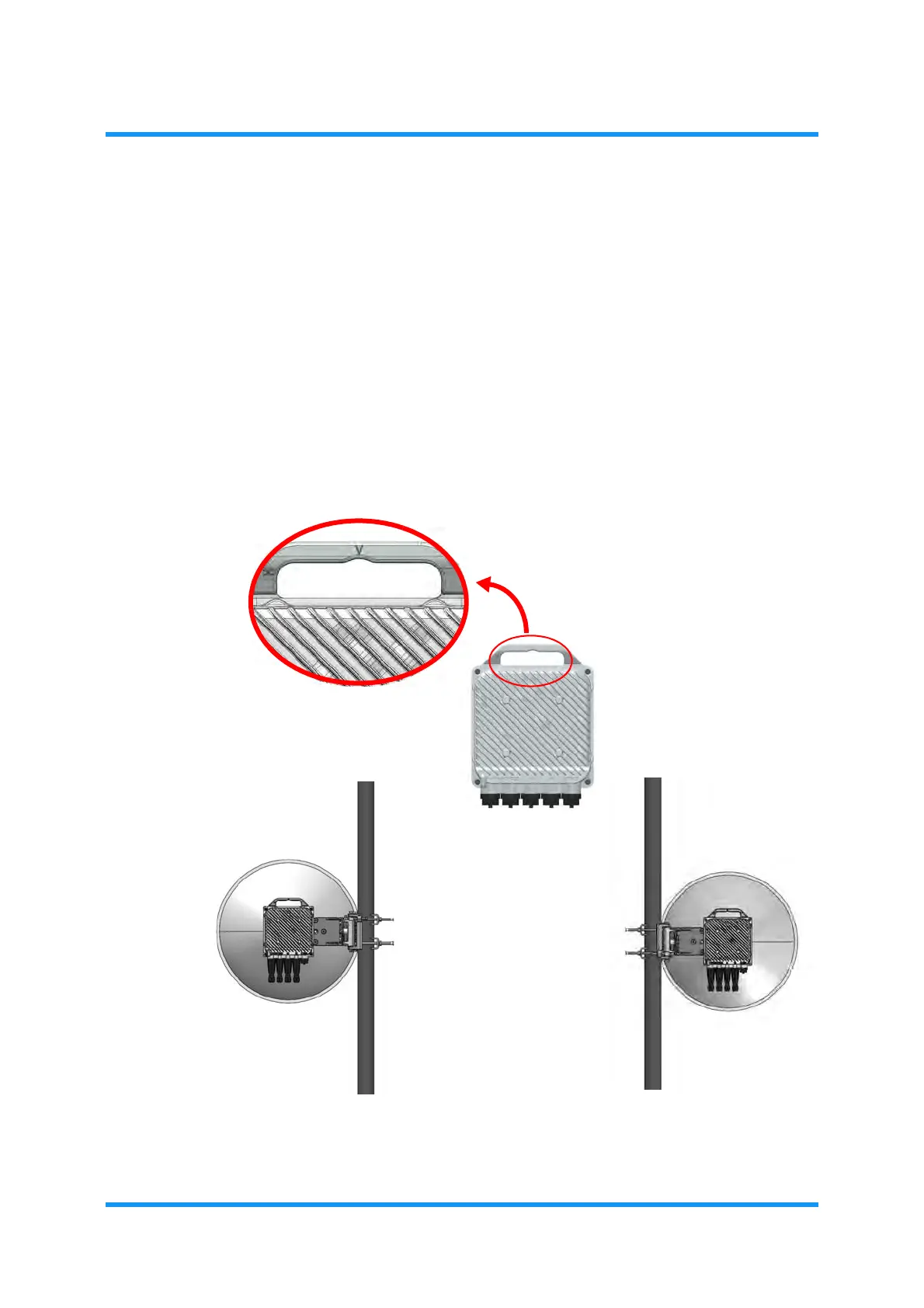

Figure 4-1 V-Polarization and Position to Install
(mounted on the left to the pole)
(mounted on the right to the pole)
