5-2 CONNECT CABLES
GGS-000546-01E iPASOLINK EX Advanced: INSTALLATION
5.2 Connecting Terminals
iPASOLINK EX/A has following terminals. Depending on its placing angle, these
terminals may be shown on bottom left.
5.2.1 iPASOLINK EX/A (1+0 System)

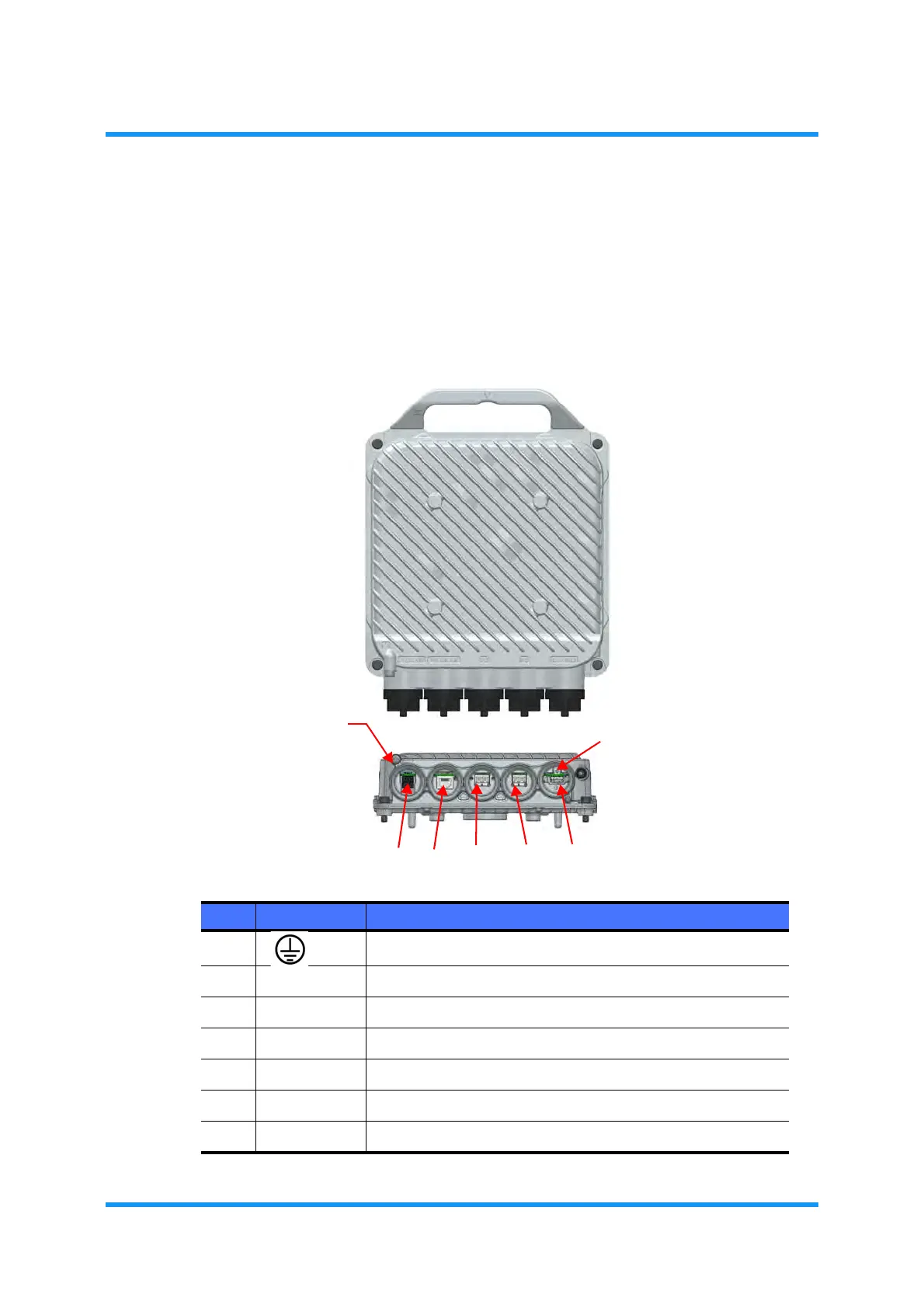

Figure 5-1 Terminals on iPASOLINK EX/A
Table 5-1 Terminals on iPASOLINK EX/A
No. INDICATION PURPOSE
➀
Grounding Terminal (dia. 5 mm)
➁
DC –48V
Power Supply (SELV)
➂
DCN (PoE)
GbE; Power Supply by PoE (RJ-45); WebLCT or NMS Connecting Port
➃
P2
SFP+ (GbE/10GbE) Port
➄
P3
SFP+ (GbE/10GbE) Port
➅
MEM
USB Memory Interface
➆
RSL
Monitoring Port for RSL (Received Signal Level)
To Next Page
