NEC iPASOLINK EX Advanced - TX Mute Control Operation on Remote Site

4-36 CONTROL ITEMS
GGS-000548-01E iPASOLINK EX Advanced: Operation & Maintenance
4.5.2.2 TX Mute Control Operation on Remote Site
Procedure 4-12
1. Click the Maintenance tool button on the tool bar of the WebLCT to put the
system into the Maintenance Mode. The
MAINT indicator on the tool bar
changes to orange.
2. In the
MENU frame on the left, expand the Maintenance Control to select
MODEM Maintenance Control. The MODEM Maintenance Control window
appears.
3. Select
Off in the TX Mute Control option.

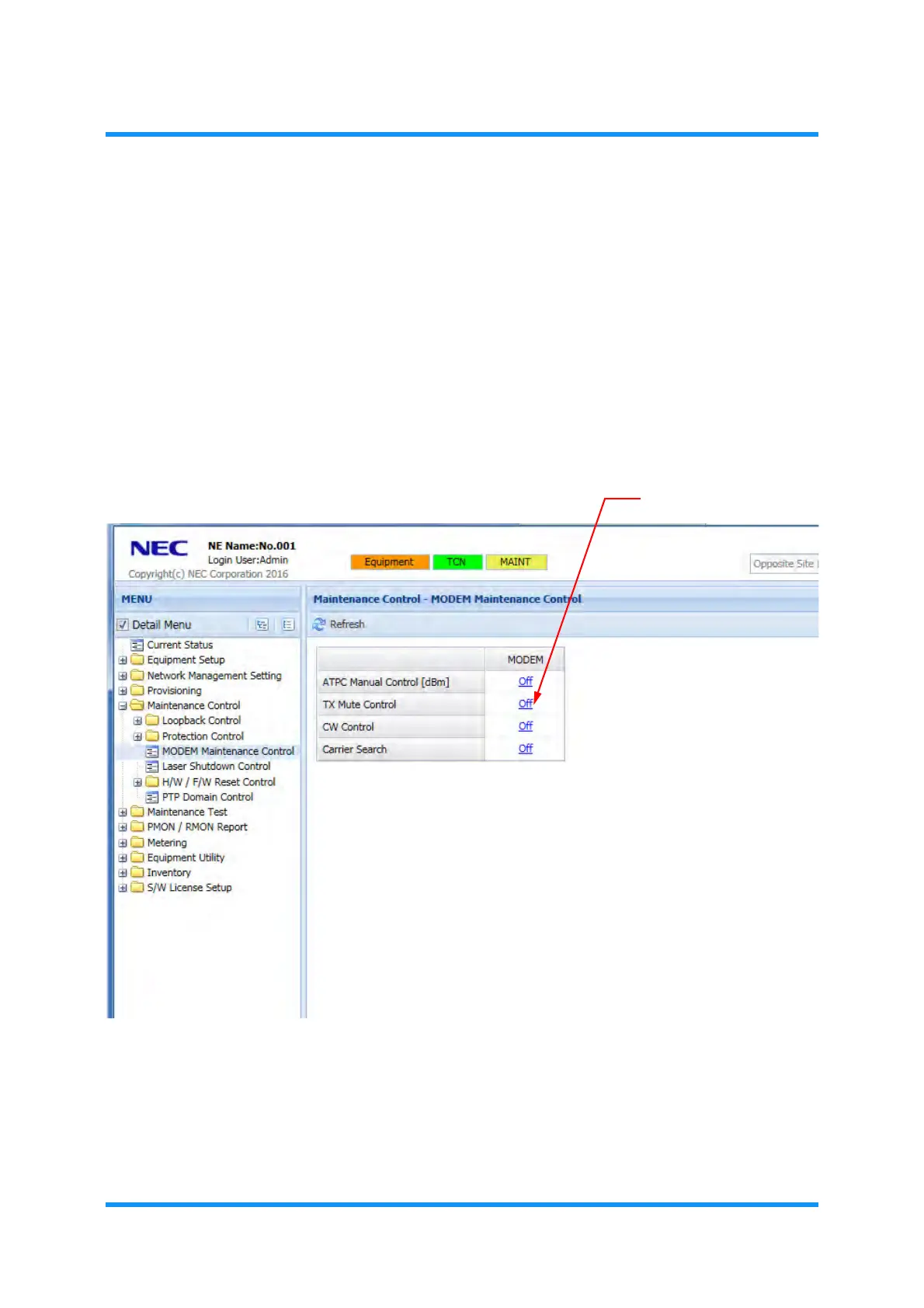

Figure 4-53 MODEM Maintenance Control Window
The MODEM Maintenance Control option window appears.
click
