INTERFACES 1-1
iPASOLINK EX Advanced: SPECIFICATION GGS-000549-01E
1. INTERFACES

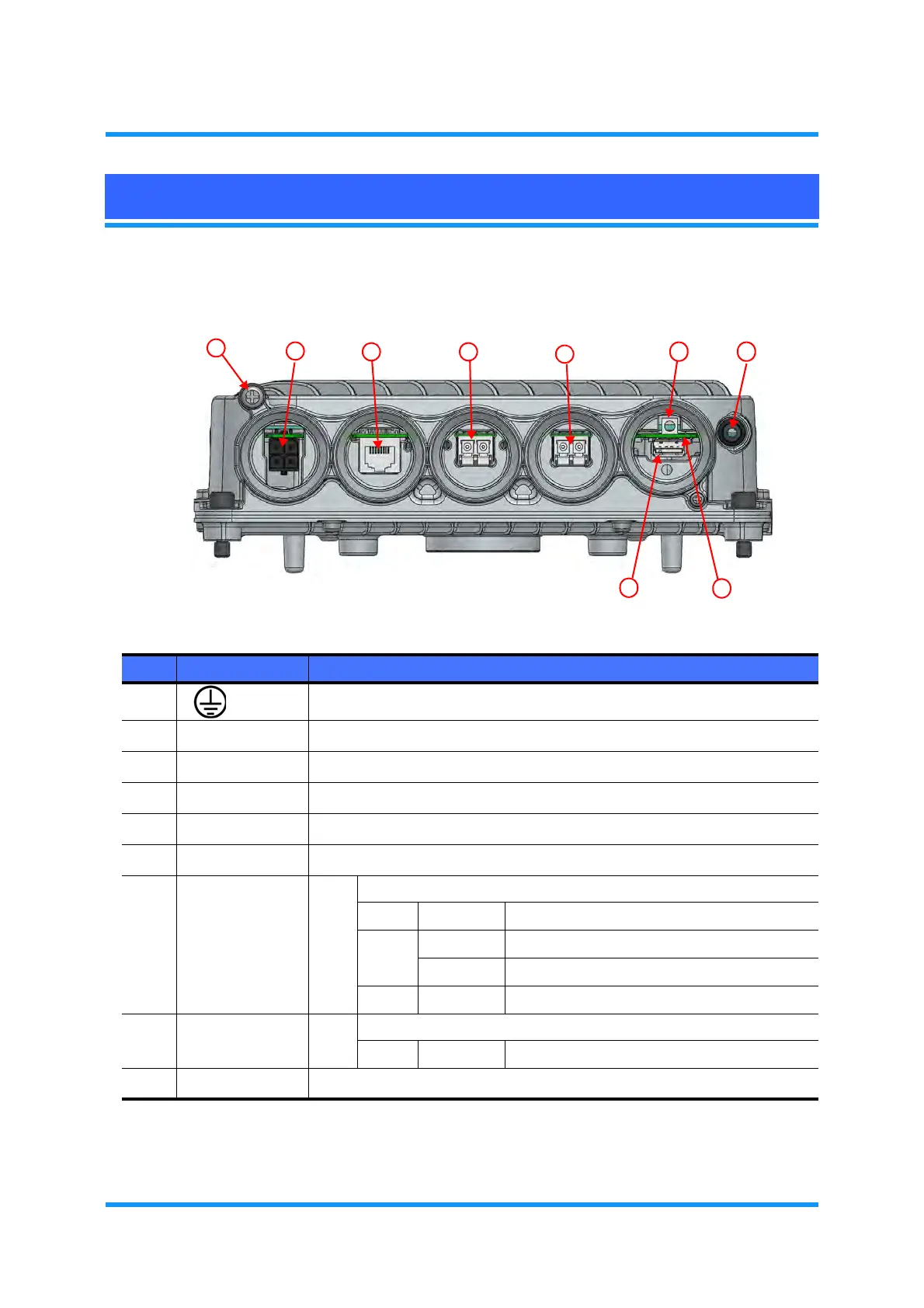

1.1 Locations of Terminals and LEDs
No. INDICATION PURPOSE
➀
Grounding Terminal (dia. 5 mm)
➁
DC –48V
Power Supply (SELV). Port.
➂
DCN (PoE)
GbE; Power Supply by PoE (RJ-45); WebLCT or NMS Connecting Port
➃
P2
SFP+ Port (GbE/10GbE Optic)
➄
P3
SFP+ Port (GbE/10GbE Optic)
➅
RSL
Monitoring Port for the Received Signal Levels
➆
SYSTEM LED
LED to indicate the system status using the colors of green or red
—— Off
Equipment is powered off
Green Blinking
Equipment is in the starting-up process
On
Equipment is in the normal state
Red On
Equipment is in the alarmed state
➇
ACCESS LED
LED to indicate the Accessing Status
Green Blinking
Data downloading/uploading is in progress
➈
MEM
USB Memory Port
1
2
3 4
5
6 7
8
9
