4.2.1.2 Polarization: Horizontal
H mark is found on the bottom left of the grip. To mount the equipment on left to the
pole, place the equipment showing its
H mark on top. To mount the equipment on
right to the pole, place the equipment showing its
H mark on bottom:

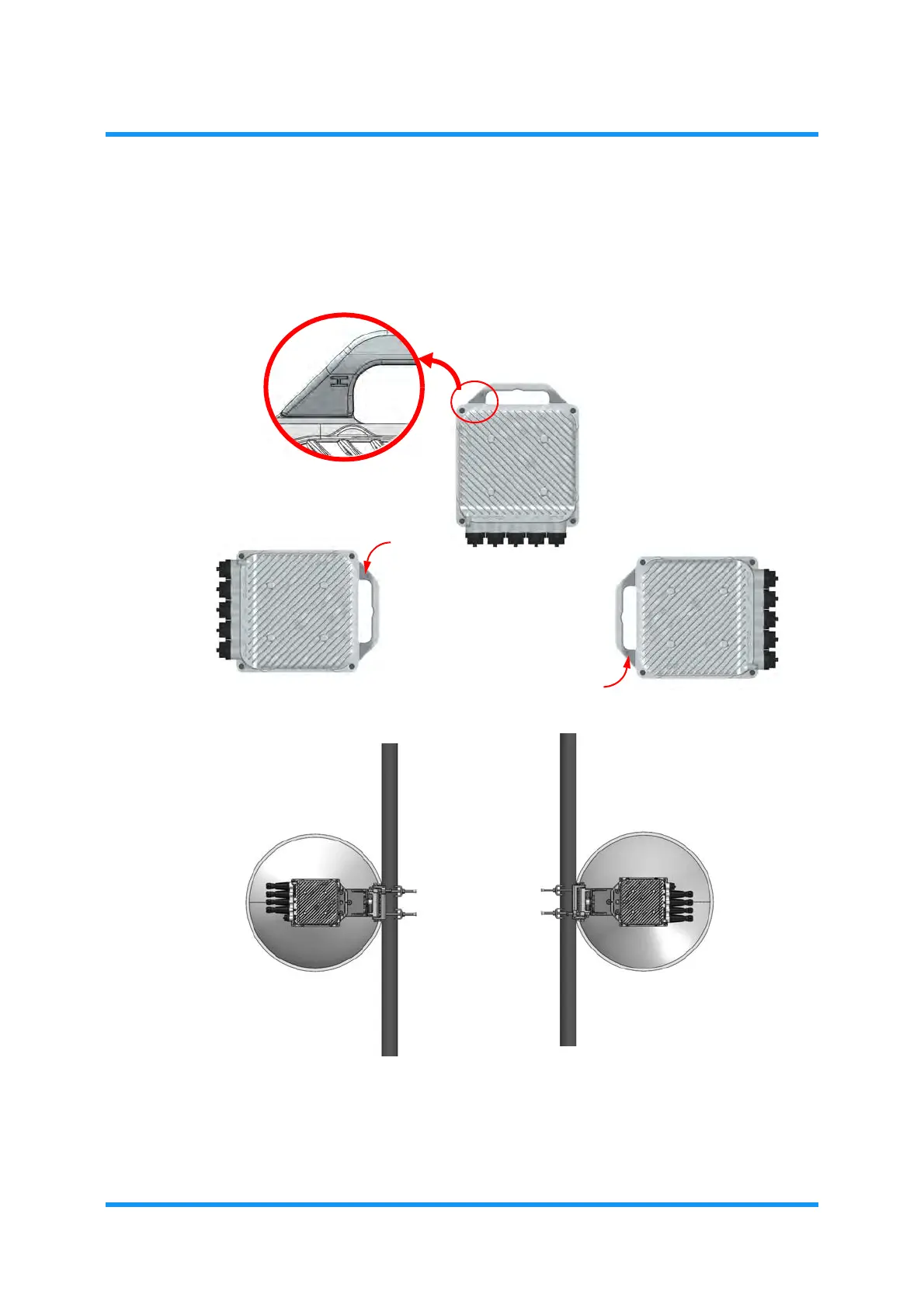

Figure 4-2 H-Polarization and Position to Install
(to mount the equipment on left to the pole)
H
H
(to mount the equipment on right to the pole)
