CONNECT CABLES 5-19
iPASOLINK EX Advanced: INSTALLATION GGS-000546-01E

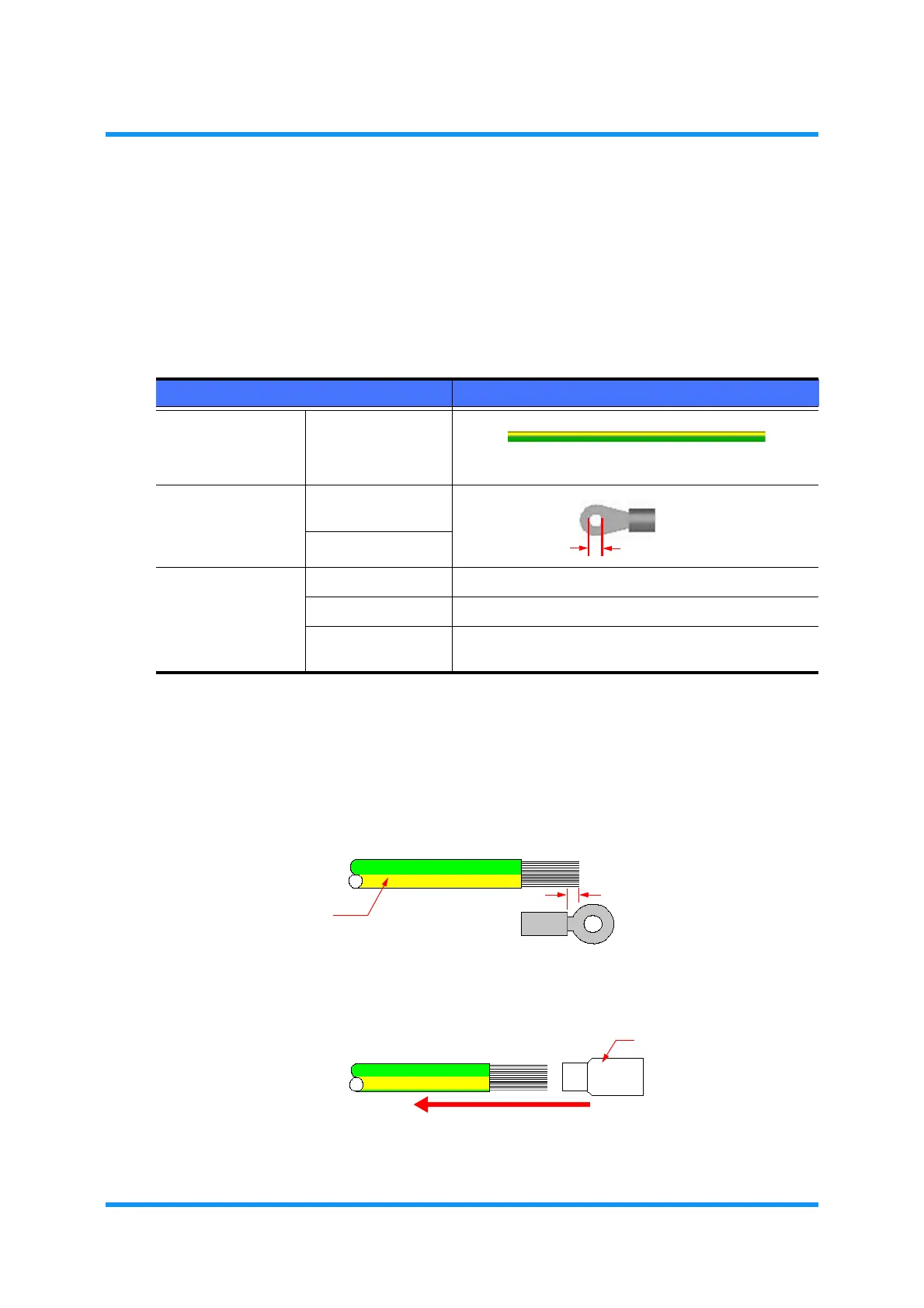

5.8 Assemble Cables
5.8.1 Grounding Cable
5.8.1.1 Outlines of Parts
5.8.1.2 Procedure
1. Cut the AWG10 cable to the appropriate length.
2. Strip approximately 7 mm of cable sheath from one end of each cable.
3. Slide the insulation sleeve onto the cable.
Table 5-5 List of Applicable Cable
Parts Description
Grounding Cable AWG10
(IEC60204-1)
Outer Color: Green and Yellow
Grounding Terminal Ring Terminal
(for M5 Screw Type)
Insulation Sleeve
Hand Tools Screwdriver Flat-blade, Phillips-head
Crimping Tool ——
Wire Stripper, Wire
Cutter, etc.
——
5.0 mm
1~2 mm
CABLE SHEATH
(RING TERMINAL)
INSULATION SLEEVE
Slide
