5-20 CONNECT CABLES
GGS-000546-01E iPASOLINK EX Advanced: INSTALLATION

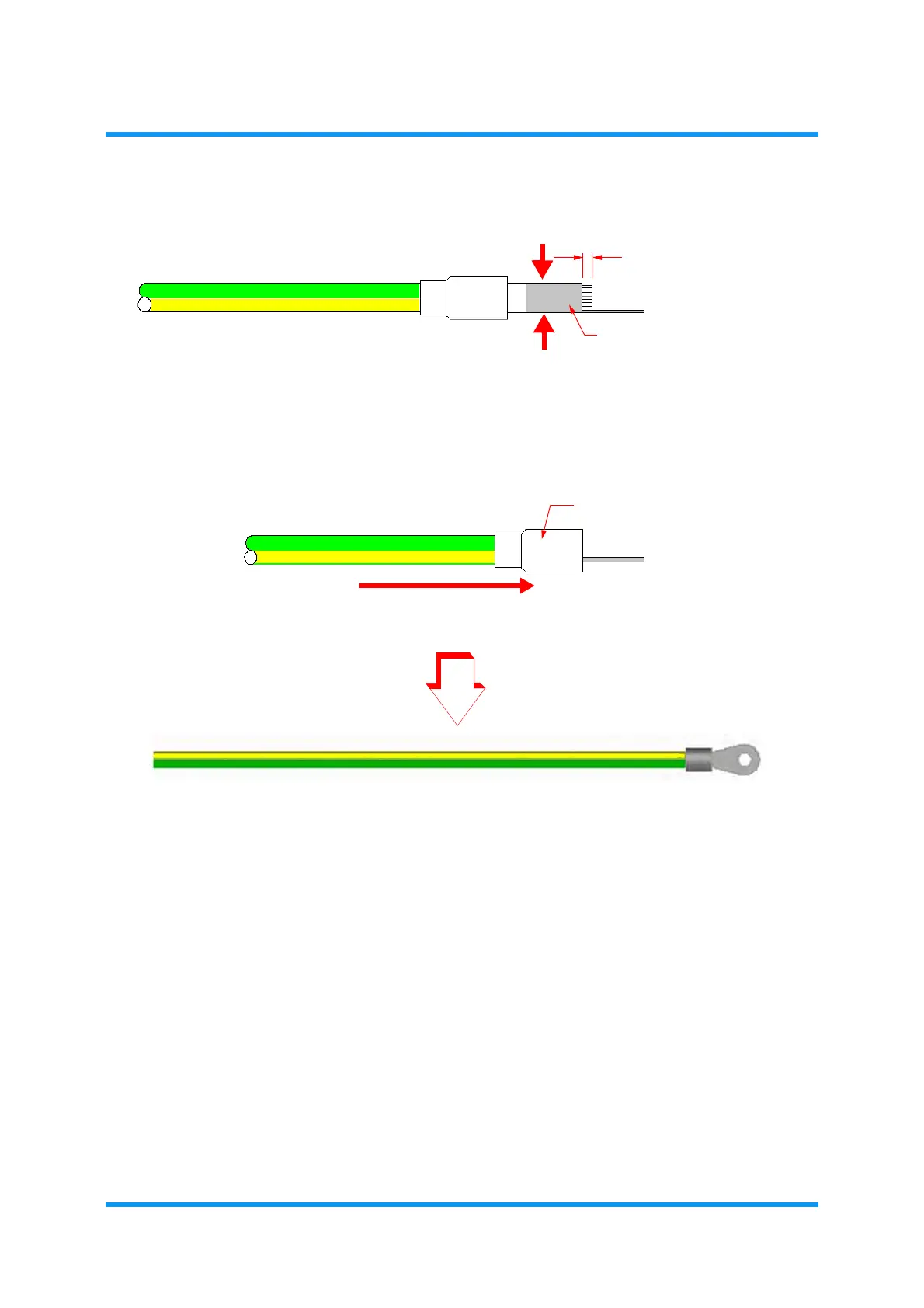

4. Apply the Crimp Ring to the cable end, and fasten it using a crimping tool.
5. Slide insulation sleeve back to cover the root of crimp contact.
This step ends the procedure.
1~2 mm
RING TERMINAL
crimp
crimp
(EXPOSED WIRE STRANDS)
(side view)
Slide back
INSULATION SLEEVE
