4.6.1 Laser Shutdown Control
Procedure 4-15
1. Click the Maintenance tool button on the tool bar of the WebLCT to put the
system into the Maintenance Mode. The
MAINT indicator on the tool bar
changes to orange.
2. In the
MENU frame on the left, expand the Maintenance Control to select
Laser Shutdown Control. The Laser Shutdown Control window appears.
3. Select
Off in the Forced Laser Shutdown Control option.

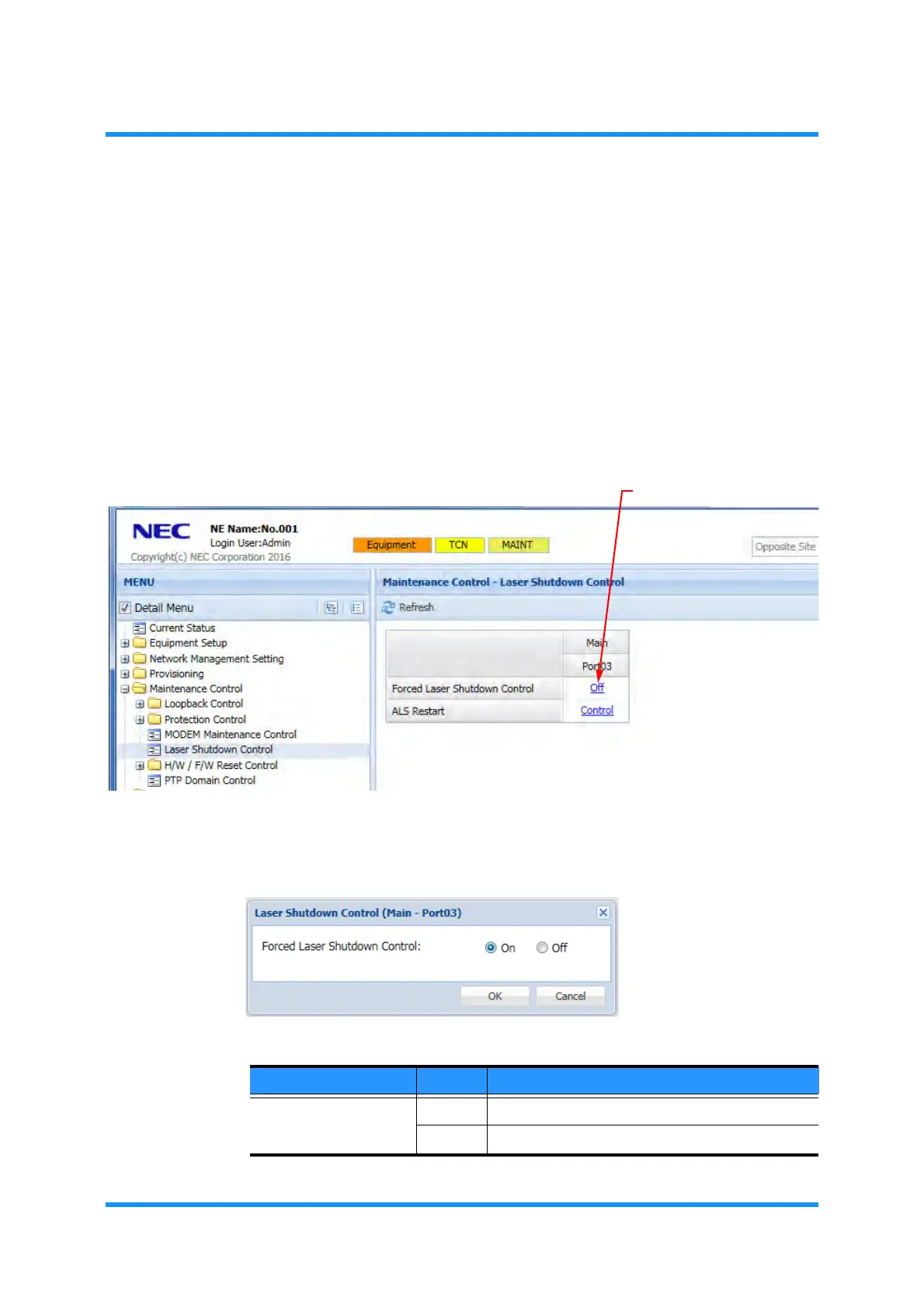

Figure 4-67 Laser Shutdown Control Window
4. Laser Shutdown Control option window appears. Set On or Off by clicking its
radio button, then click the
OK button.
Figure 4-68 Laser Shutdown Control Option Window
Table 4-8 Forced Laser Shutdown Control
Parameter Value Description
Forced Laser
Shutdown Control
ON Forcibly shuts down the optical outputs.
Off Normal operation
click
