NEC iPASOLINK EX Advanced - Qos Class and Shaper Setting; Shaper Setting Tab

Set ETH Function 8-153
iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING GGS-000547-01E
8.10.3 Shaper Setting Tab
8.10.3.1 QoS Class and Shaper Setting
Procedure 8-46
1. Launch and log in to WebLCT.
2. In the MENU frame on the left, expand Provisioning, then its submenu ETH
Function Setting
to select QoS/Classification Setting.
3. The QoS/Classification Setting window appears. In the Shaper Setting tabbed
page, click the link of
Number of Queue or VLAN Shaper.

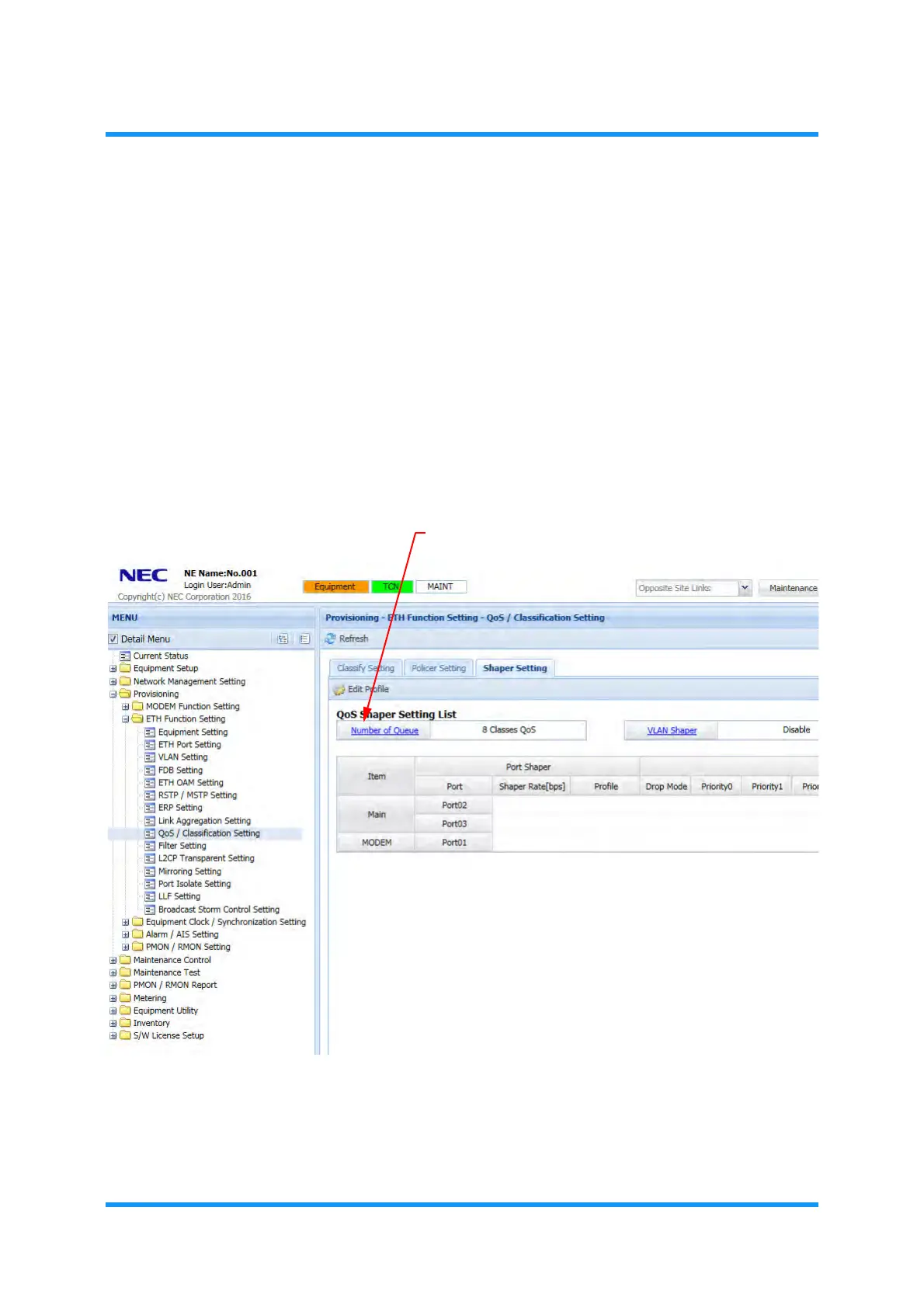

Figure 8-210 QoS/Classification Setting Window
The Number of Queue Setting option window appears.
click
