NEC iPASOLINK EX Advanced - Modify VLAN Service Name

Set ETH Function 8-21
iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING GGS-000547-01E
8.4.2 Modify VLAN Service Name
Procedure 8-6
1. Launch and log in to WebLCT.
2. In the MENU frame on the left, expand Provisioning, then its submenu ETH
Function Setting
to select VLAN Setting. The VLAN Setting window appears.
3. In the VLAN List tabbed page, select the target object by clicking the VLAN
Service Name
.

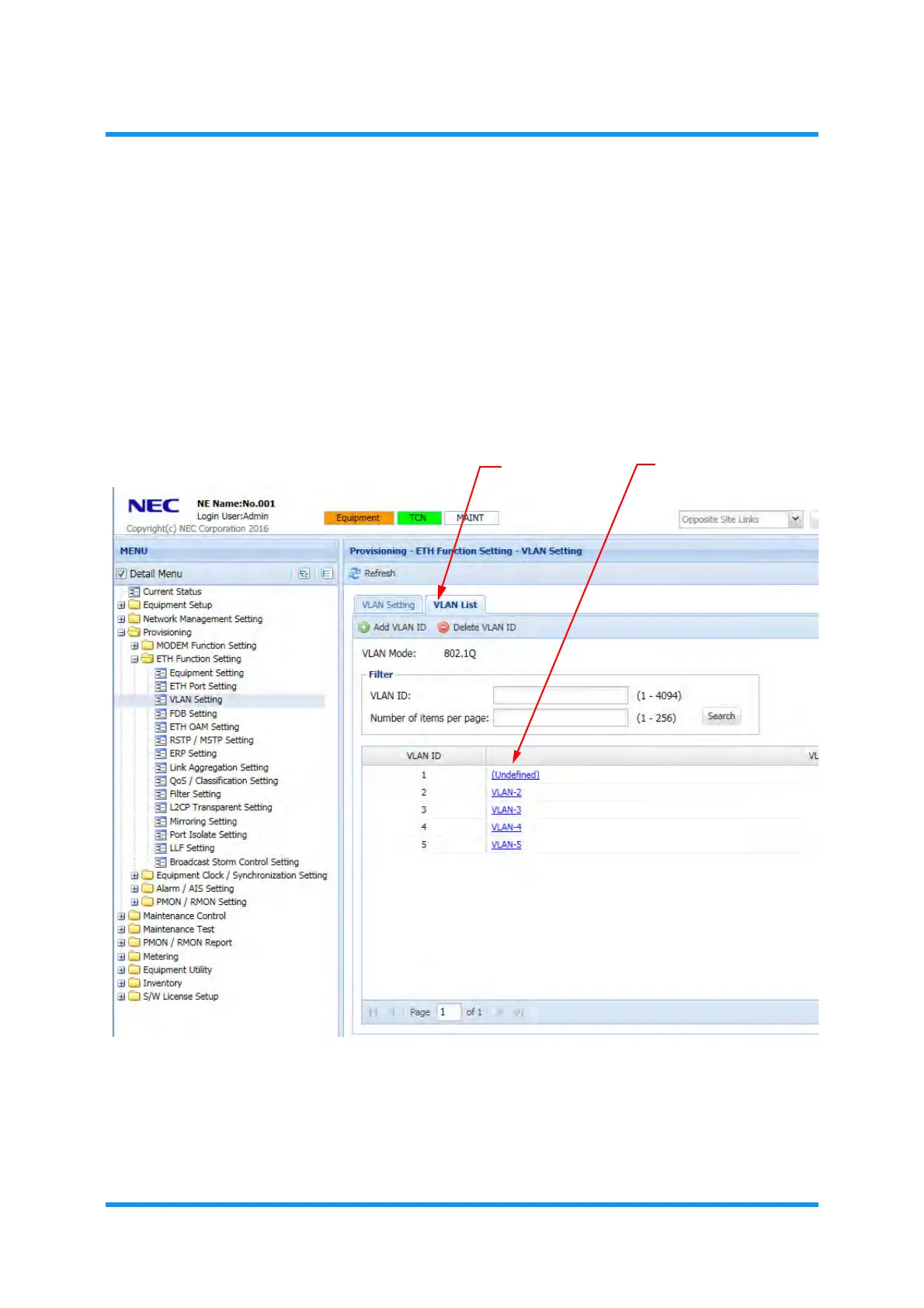

Figure 8-22 VLAN Setting — VLAN List Tab (example: 802.1q)
Modify VLAN Service Name
option window appears.
VLAN List tab
select a target object
