NEC iPASOLINK EX Advanced - Delete VLAN;S-VLAN ID

Set ETH Function 8-23
iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING GGS-000547-01E
8.4.3 Delete VLAN/S-VLAN ID
Procedure 8-7
1. Launch and log in to WebLCT.
2. In the MENU frame on the left, expand Provisioning, then expand ETH Function
Setting
to select VLAN Setting. The VLAN Setting window appears.
3. In the VLAN List tabbed page, click the Delete VLAN ID tool button on the tool
bar.

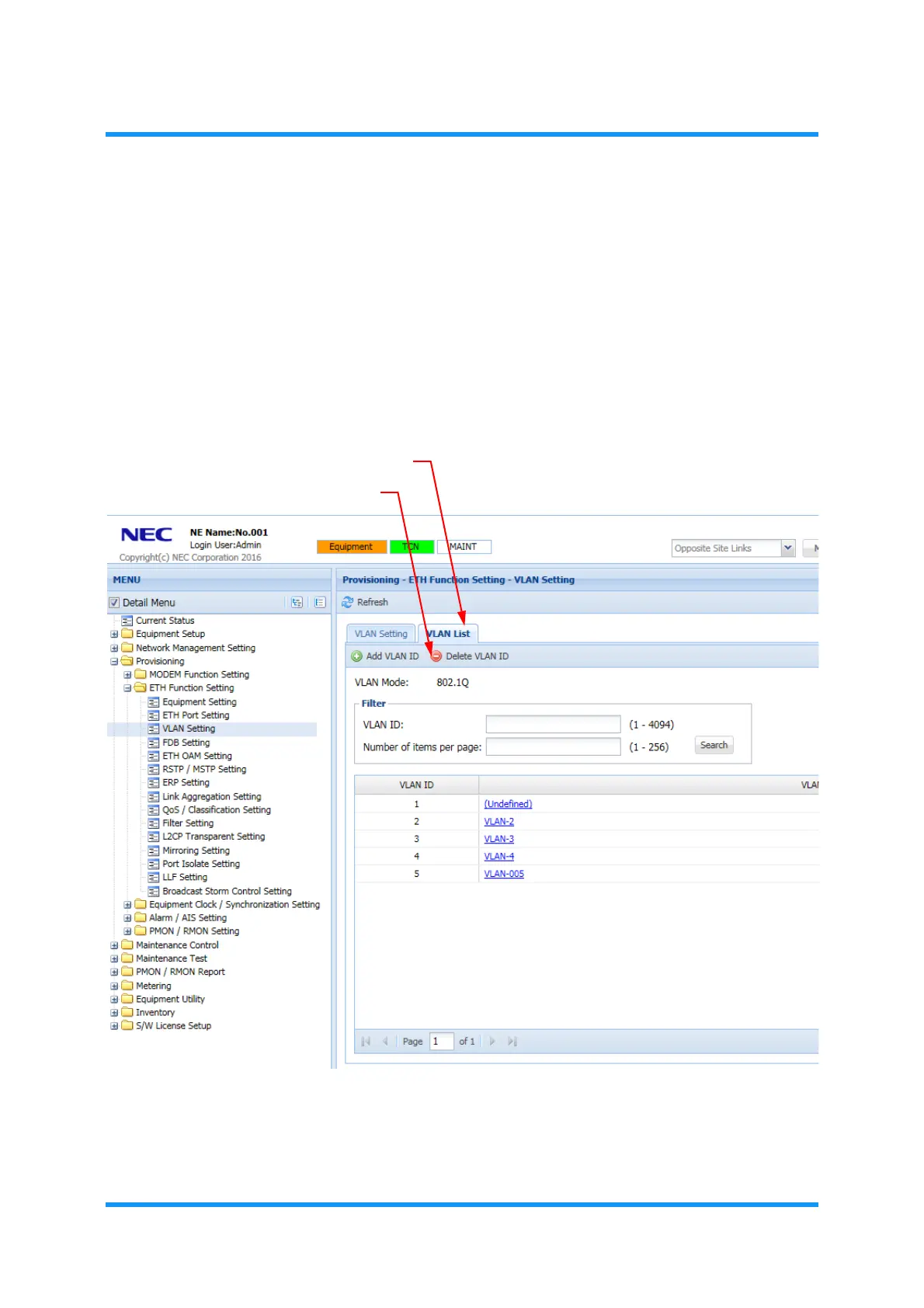

Figure 8-26 VLAN Setting Window — VLAN List Tab (example: 802.1q)
The Delete VLAN ID option window appears.
VLAN List tab
Delete VLAN ID tool button
