8-22 Set ETH Function
GGS-000547-01E iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING
4. Enter the modified/new name into the VLAN Service Name text box, then click
the
OK button.

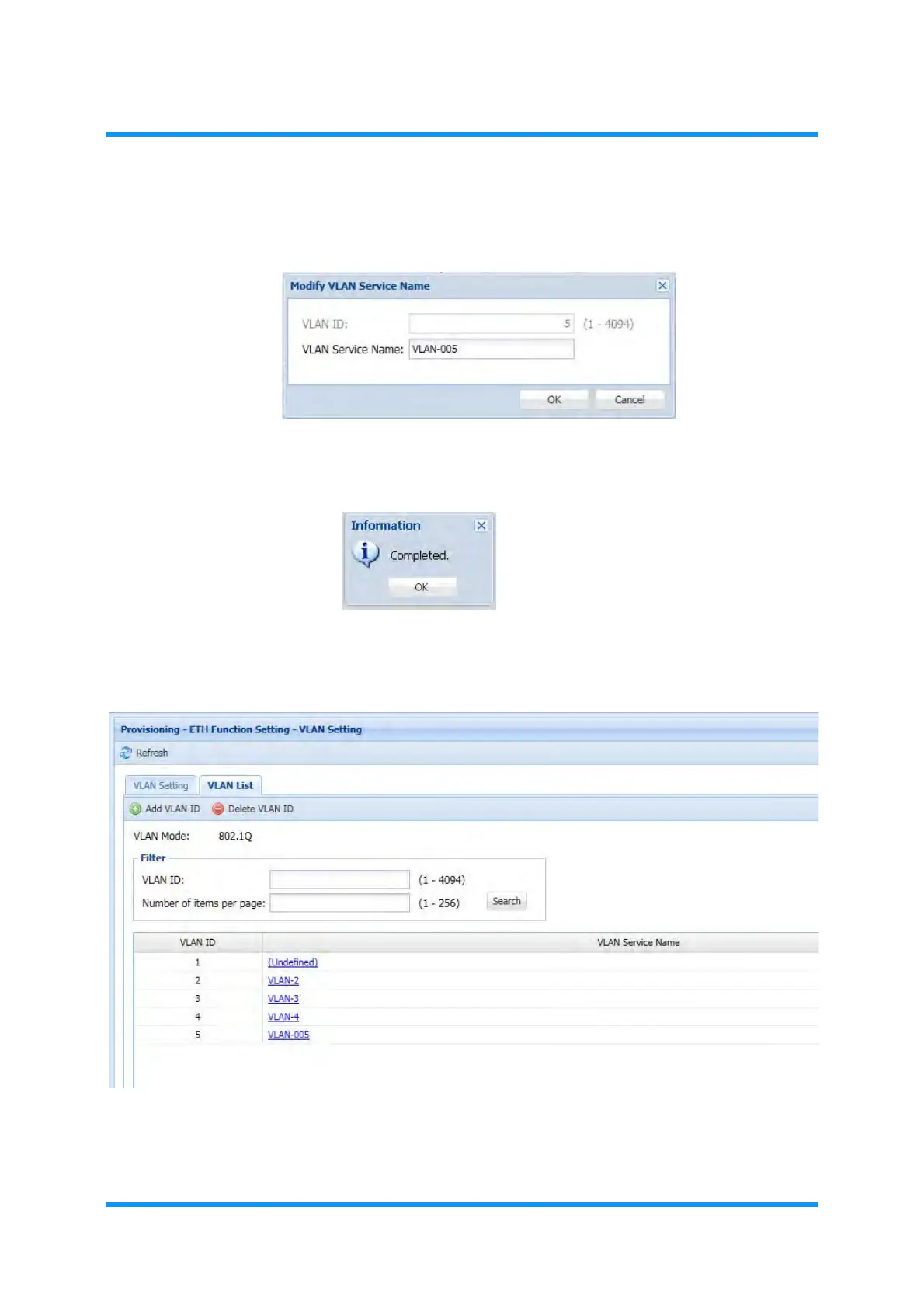

Figure 8-23 Modify VLAN Service Name Option Window (example: 802.1q)
5. Information dialog box appears. Click the OK button to proceed.
Figure 8-24 Information Dialog Box
6. The VLAN Setting window updates the information. Verify the displayed
parameters.
Figure 8-25 VLAN Setting Window (example: 802.1q)
This step ends the procedure.
