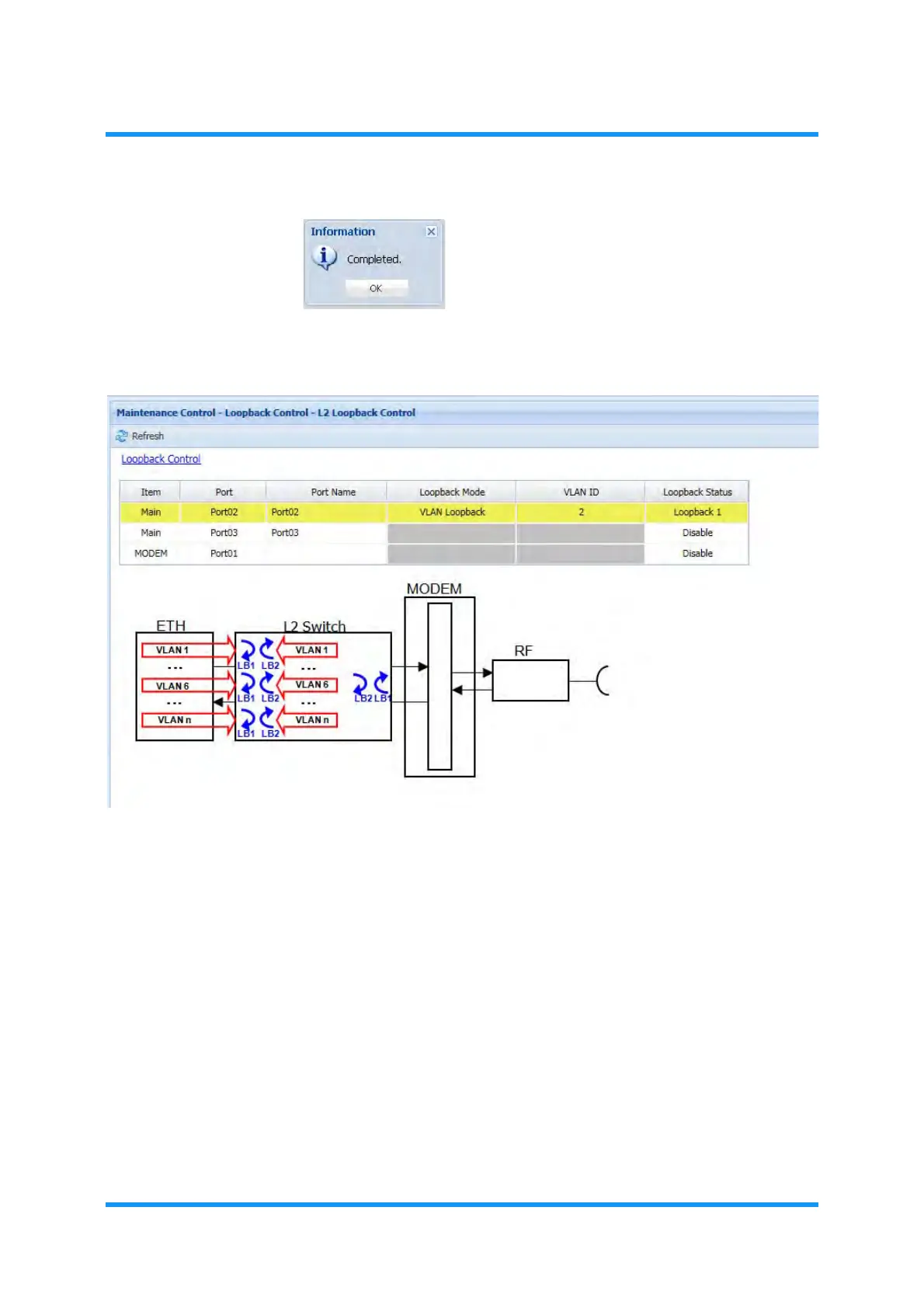

Figure 4-6 Information Dialog Box
8. L2 Loopback Control window updates the information.
Figure 4-7 L2 Loopback Control Window
9. When the loopback test ends, click Maintenance tool button on the WebLCT
tool bar to exit from the Maintenance Mode.
10. Confirm that the
MAINT color turns from orange to white.
This step ends procedure.
