CONTROL ITEMS 4-9
iPASOLINK EX Advanced: OPERATION & MAINTENANCE GGS-000548-01E
3. Click a linked Off in the Loopback Status field.

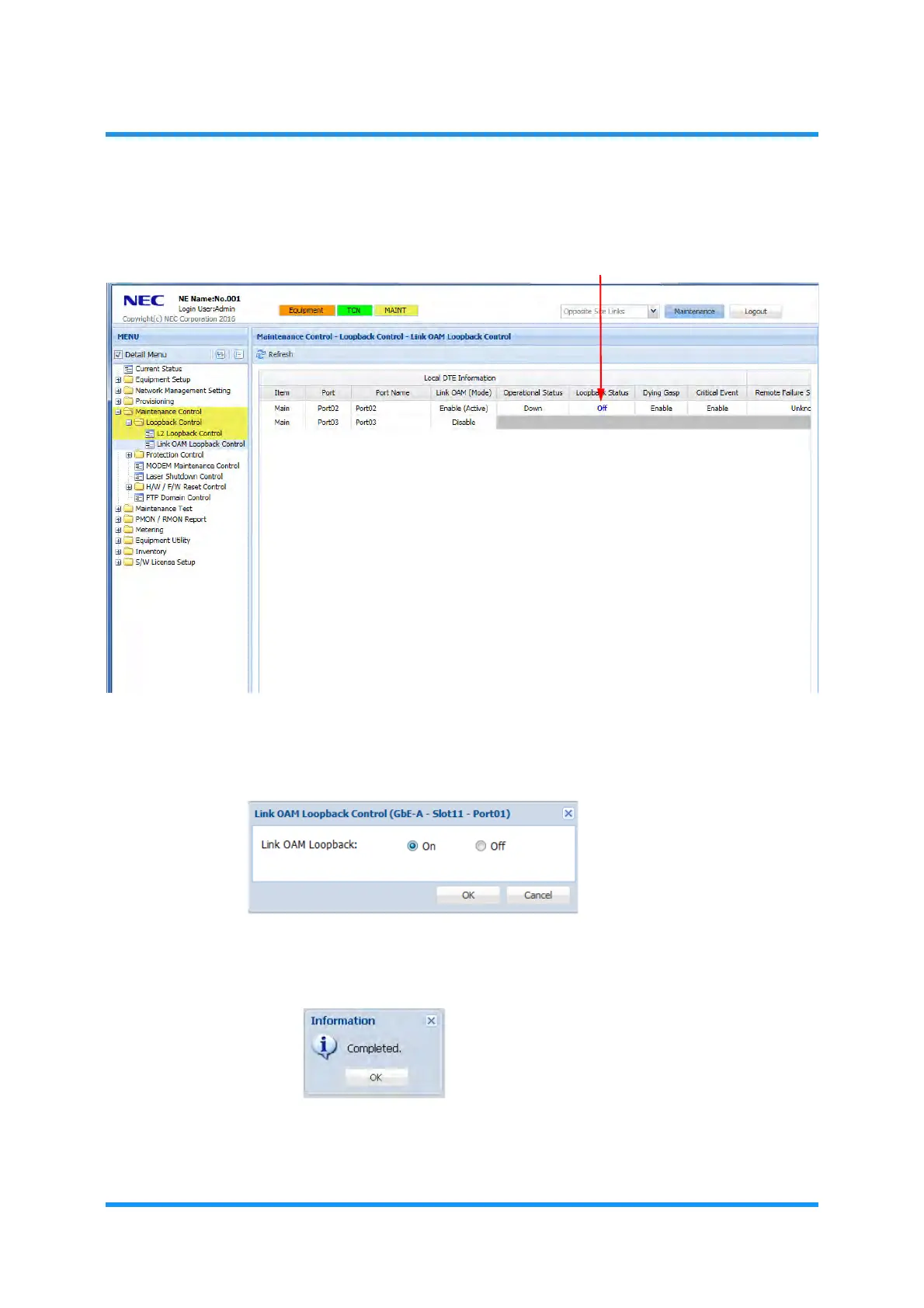

Figure 4-9 Link OAM Loopback Control Window
4. Link OAM Loopback Control option window appears. Click On radio button,
then click the OK button.
Figure 4-10 Link OAM Loopback Control Option Box
5. When Information dialog box appears, click the OK button to proceed.
Figure 4-11 Information Dialog Box
To Next Page
