2-2 COMPOSITIONS
GGS-000546-01E iPASOLINK EX Advanced: INSTALLATION

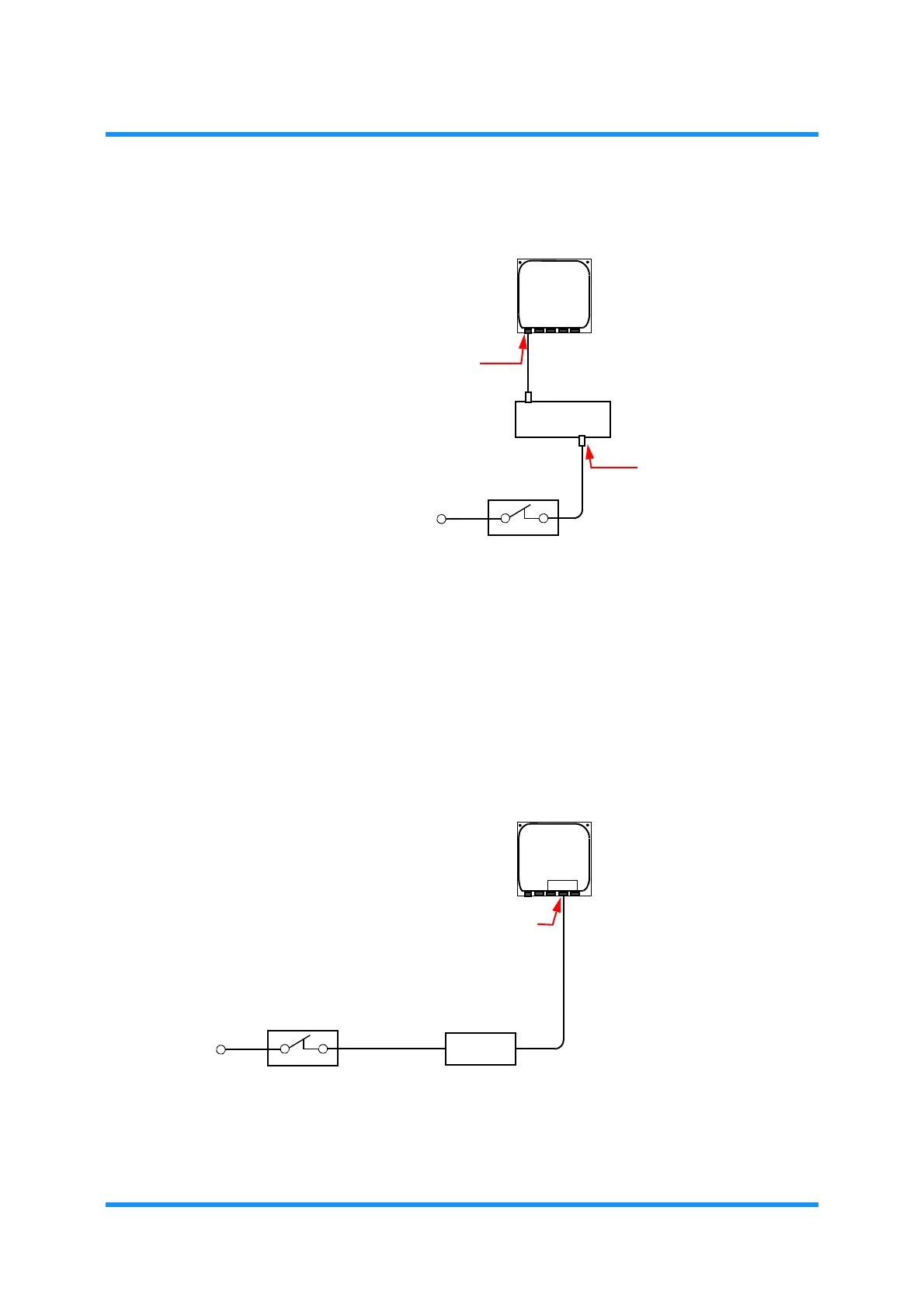

 Using AC Power Module
 Using PoE Port
When using the PoE Port to supply the power, the –48 V DC Power Port must be
disabled. Select either –48 V DC Power Port or PoE Port but not both for the power
supply.
DC –48V
EXTERNAL CIRCUIT BREAKER
AC POWER CABLE
AC POWER
MODULE
POWER CABLE
AC 100 V to 240 V
EX/A
(2-Core Shielded Cable of 14 to 16 AWG)
EXTERNAL CIRCUIT BREAKERS
LAN CABLE
LAN PoE Port
POWER
INJECTOR
EX/A
