NETWORK MANAGEMENT 5-13
iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING GGS-000547-01E
4. Specify parameters:

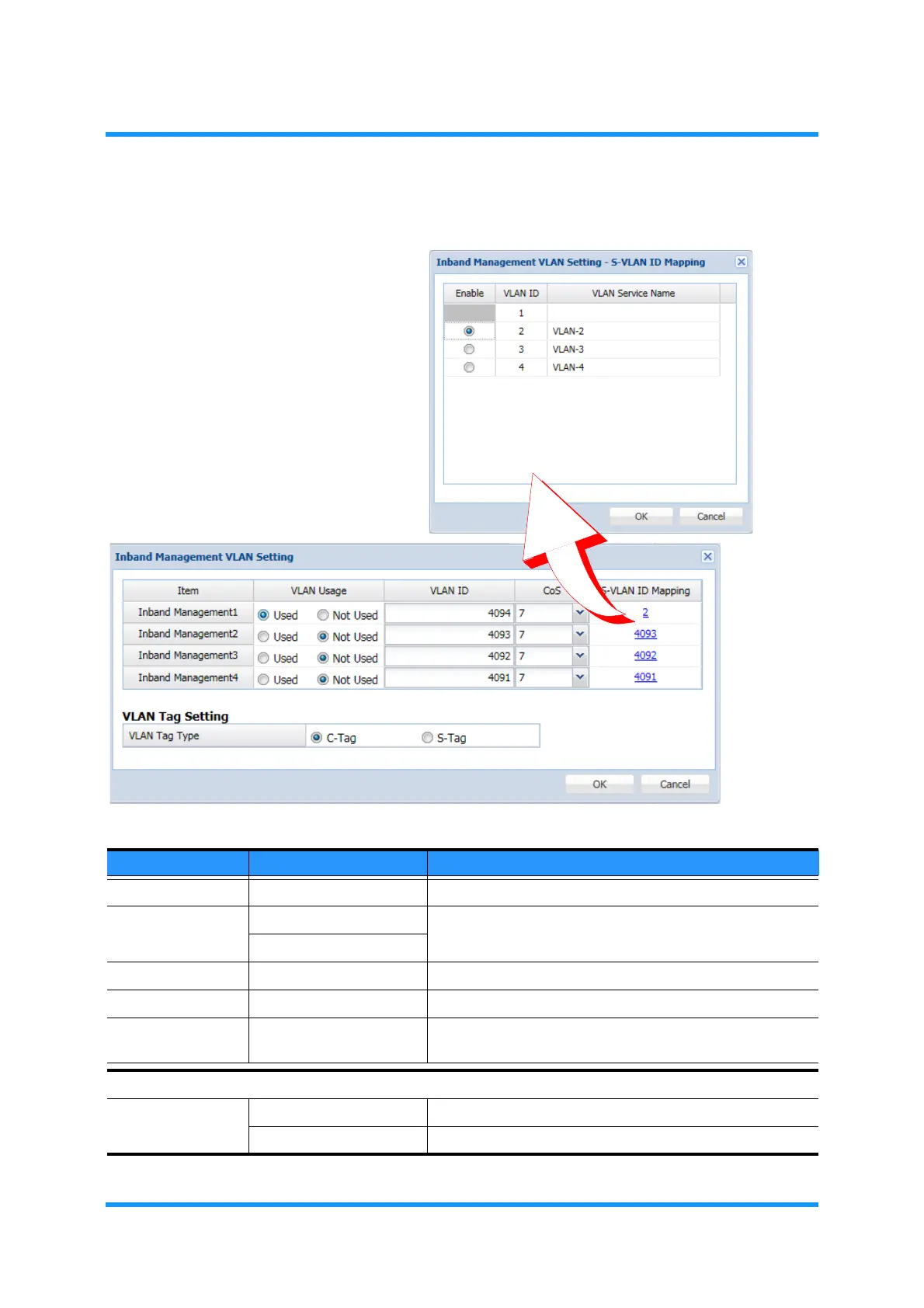

Figure 5-16 Inband Management VLAN Setting Option Window
Table 5-4 Inband Management VLAN Setting Parameters
Parameter Value Description
ITEM Inband Management ——
VLAN Usage Used Set to use or not to use VLAN.
Not Used
VLAN ID 1 to 4094 Assign the VLAN ID to the Inband Management VLAN.
CoS 0 to 7 Assign the Class of Service
S-VLAN ID
Mapping
1 to 4094 Select the S-VLAN ID on the user interfaces to be mapped
to the inband Management VLAN
VLAN Tag Setting
VLAN Tag Type C-Tag Enables the use of C-Tag to the Inband Management VLAN.
S-Tag Enables the use of S-Tag to the Inband Management VLAN.
clicking S-VLAN ID link opens
S-VALN Mapping option window
