5-26 NETWORK MANAGEMENT
GGS-000547-01E iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING
4. Modify parameter(s), then click the OK button.

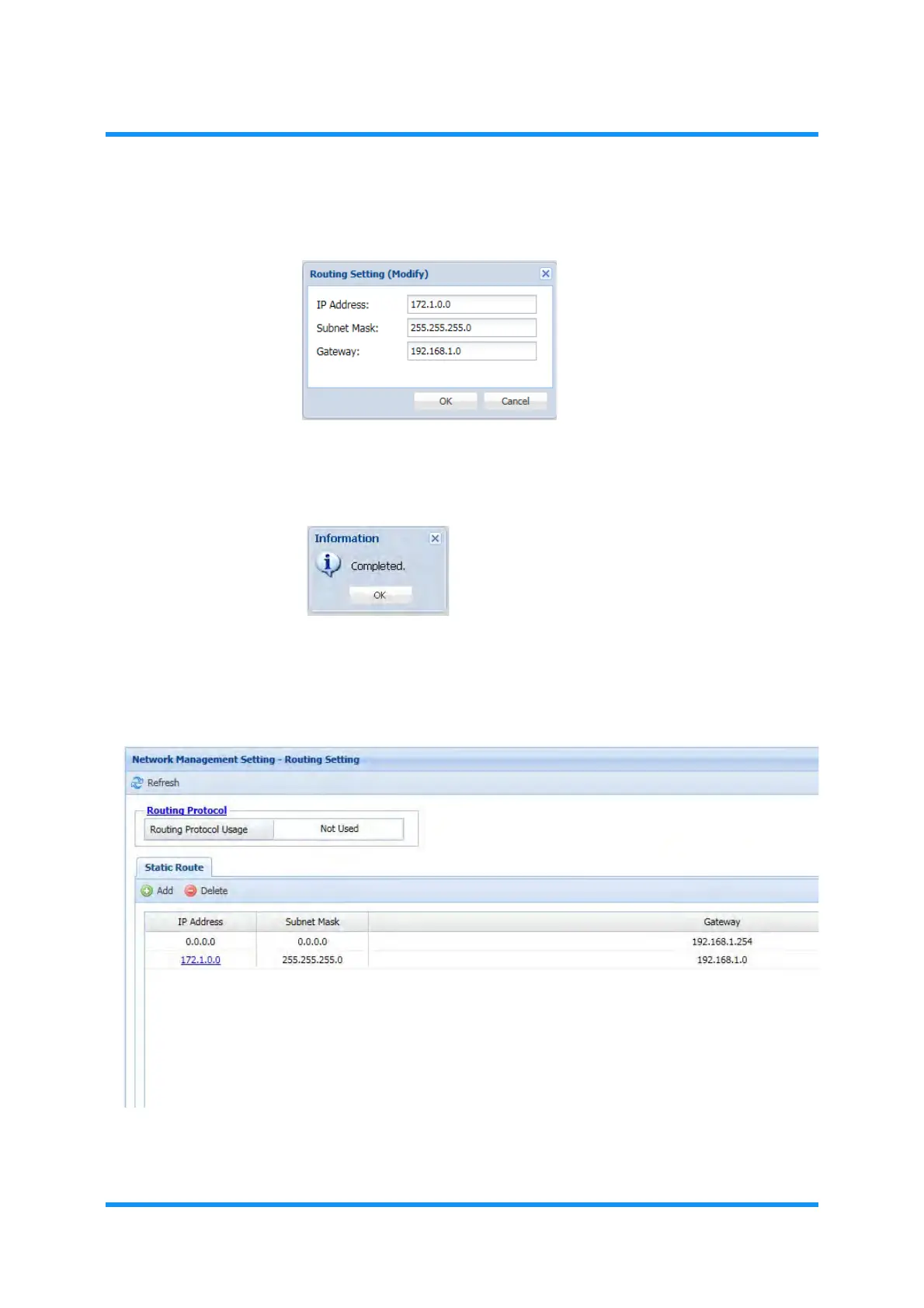

Figure 5-37 Routing Setting (Modify) Option Window
5. Information dialog box appears. Click the OK button to proceed.
Figure 5-38 Information Dialog Box
6. The Routing Setting window updates the information. Confirm the display for
the modified information.
Figure 5-39 Routing Setting Window
This step ends the procedure.
