NETWORK MANAGEMENT 5-55
iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING GGS-000547-01E

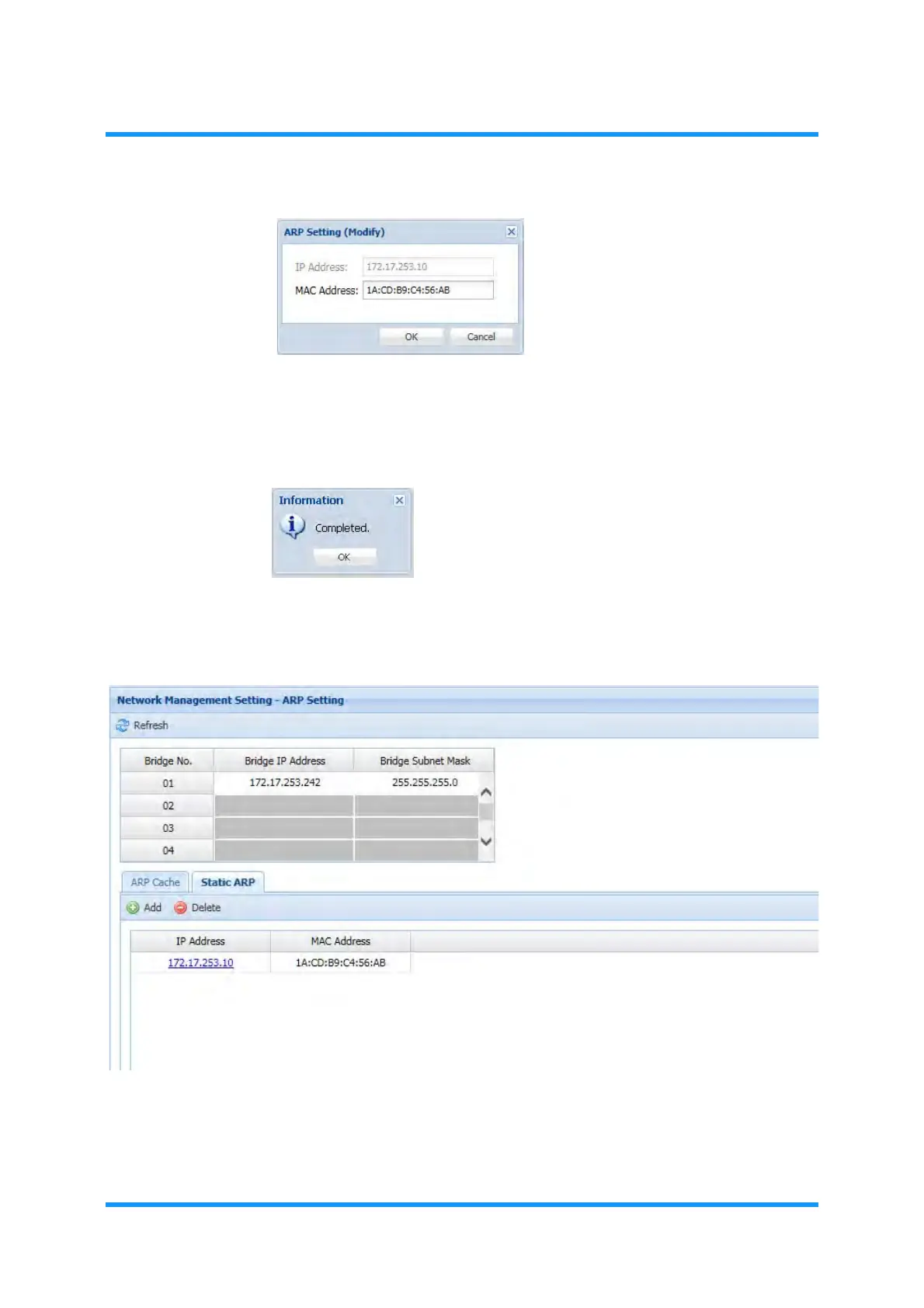

Figure 5-84 ARP Setting (Modify) Option Window
5. When completed, click the OK button. Information dialog box appears.
6. Click the OK button to proceed.
Figure 5-85 Information Dialog Box
7. The ARP Setting window updates the information. Confirm the display for the
modified ARP information.
Figure 5-86 ARP Setting Window
This step ends the procedure.
To Next Page
