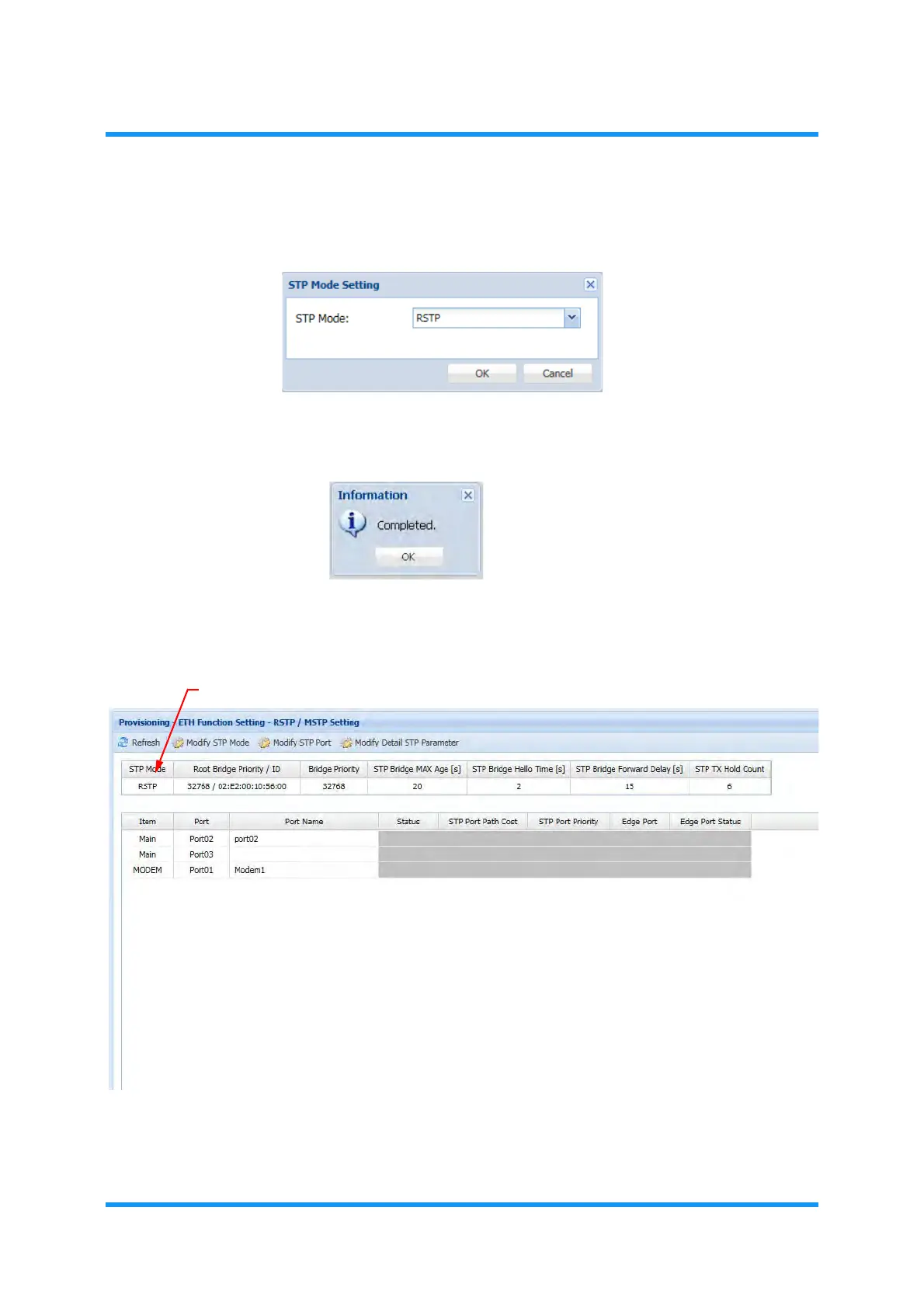

4. The STP Mode Setting option window appears. Select RSTP or MSTP from the
STP Mode drop-down list.
Figure 8-122 STP Mode Setting Option Window
5. Information dialog box appears. Click the OK button to proceed.
Figure 8-123 Information Dialog Box
RSTP / MSTP Setting window of the selected mode appears:
Figure 8-124 RSTP / MSTP Setting Window (example: for RSTP Mode)
This step ends the procedure.
