4. Assign the appropriate value to each parameter:

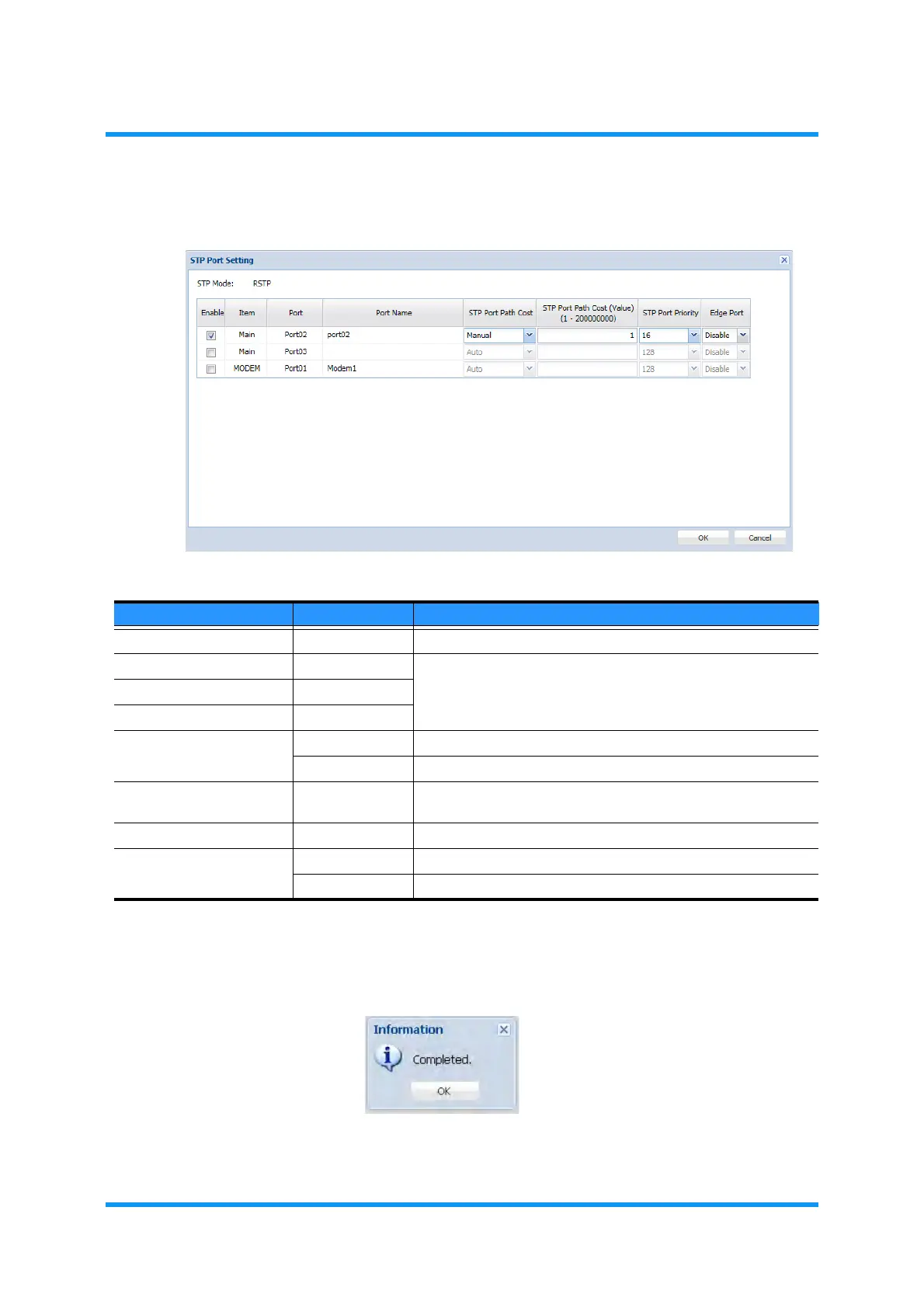

Figure 8-126 RSTP Port Setting Option Window
5. When completed, click the OK button. Information dialog box appears.
6. Click the OK button to proceed.
Figure 8-127 Information Dialog Box
The RSTP / MSTP Setting window updates the information.
Table 8-22 RSTP Port Setting Parameter
Parameter Value Description
Enable (check box) Tick the check box to select the target object.
Item (read only) Shows the information.
Port (read only)
Port Name / LAG Name (read only
STP Port Path Cost Auto Enables the function to automatically calculate the path costs.
Manual Selects to manually calculate and enter the path costs.
STP Port Path Cost
(Value)
1 to 200000000 This filed is enabled by setting STP Port Path Cost to Manual.
Enter the cost manually.
STP Port Priority 0 to 240 Specifies the STP Port Priority. [granularity: 16]
Edge Port Enable Sets the target port to Edge Port.
Disable Removes the Edge Port setting from the target port.
