5. When completed, click the OK button. Information dialog box appears.
6. Click the OK button to proceed.

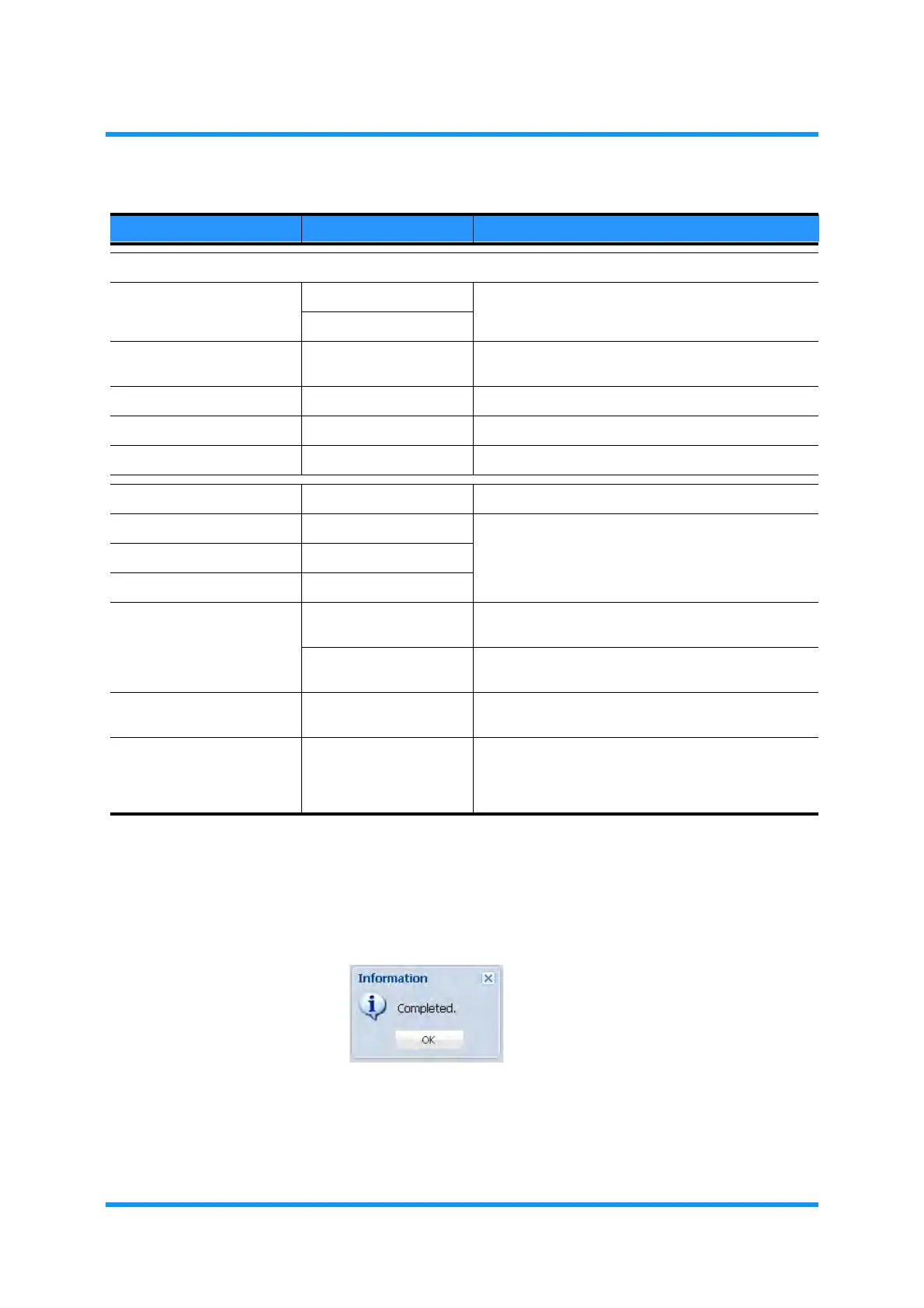

Figure 8-136 Information Dialog Box
The RSTP / MSTP Setting window updates the information.
MSTI1, MSTI2, MSTI3, MSTI4 tabs
MSTI1 - MSTI4 Enable Enables/Disables the usage of selected MSTI
(options below).)
Disable
MSTI Regional Root
Bridge Priority / ID
(read only) Indicates the Regional Root Bridge Priority and ID of
the selected port.
Instance No. 1 to 4093 Enter the number to select the instance.
Bridge Priority (MSTI) 0 to 61440 Select a Bridge Priority. [granularity: 4096]
Member VLAN (read only) Indicates the member VLAN IDs of the selected port.
Enable (check box) Tick the check box to select the target object.
Item (read only) Shows the information.
Port (read only)
Port Name / LAG Name (read only
STP Port Path Cost Auto Enables the function to automatically calculate the
path costs.
Manual Selects to manually calculate and enter the path
costs.
STP Port Path Cost
(Value)
1 to 200000000 This filed is enabled by setting STP Port Path Cost
to Manual. Enter the cost manually.
STP Port Priority 0 to 240
[0, 16, 32, 48, 66, 80,
96, 112, 128, 144, 160,
176, 192, 208, 224, 240]
Specifies the STP Port Priority.
Table 8-24 MSTP Port Setting Parameter (2 of 2)
Parameter Value Description
