Set ETH Function 8-123
iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING GGS-000547-01E
4. Tick a check box of the LAG to be removed, then click the OK button. Ticking
the check box on the title bar selects all.

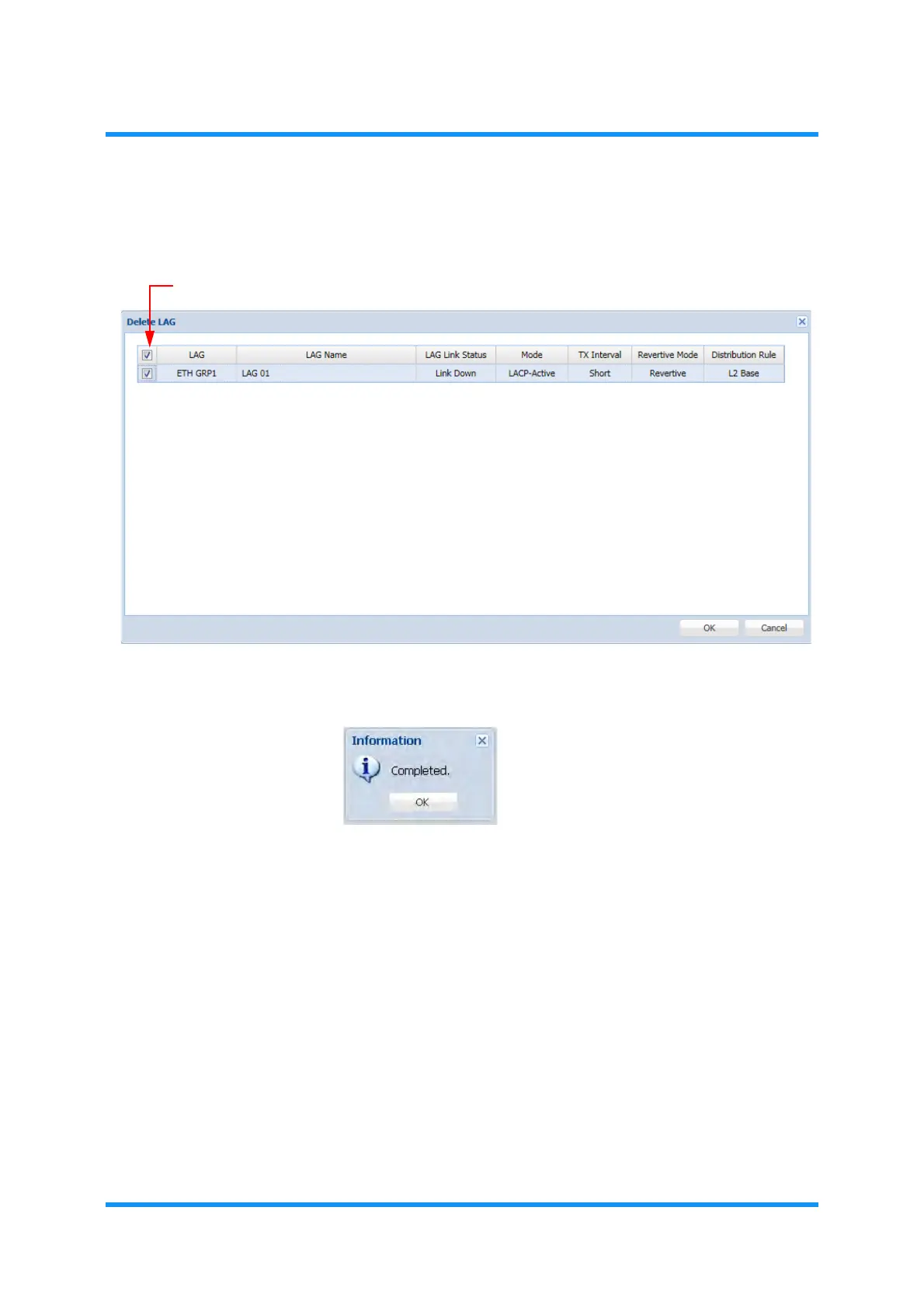

Figure 8-170 Delete LAG Option Window
5. Information dialog box appears. Click the OK button to proceed.
Figure 8-171 Information Dialog Box
The Link Aggregation Setting window updates the information.
To Next Page
