8-172 Set ETH Function
GGS-000547-01E iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING
4. Modify the filter conditions. See Table 8-46 Add Filter Entry Parameters for
descriptions regarding the parameters.

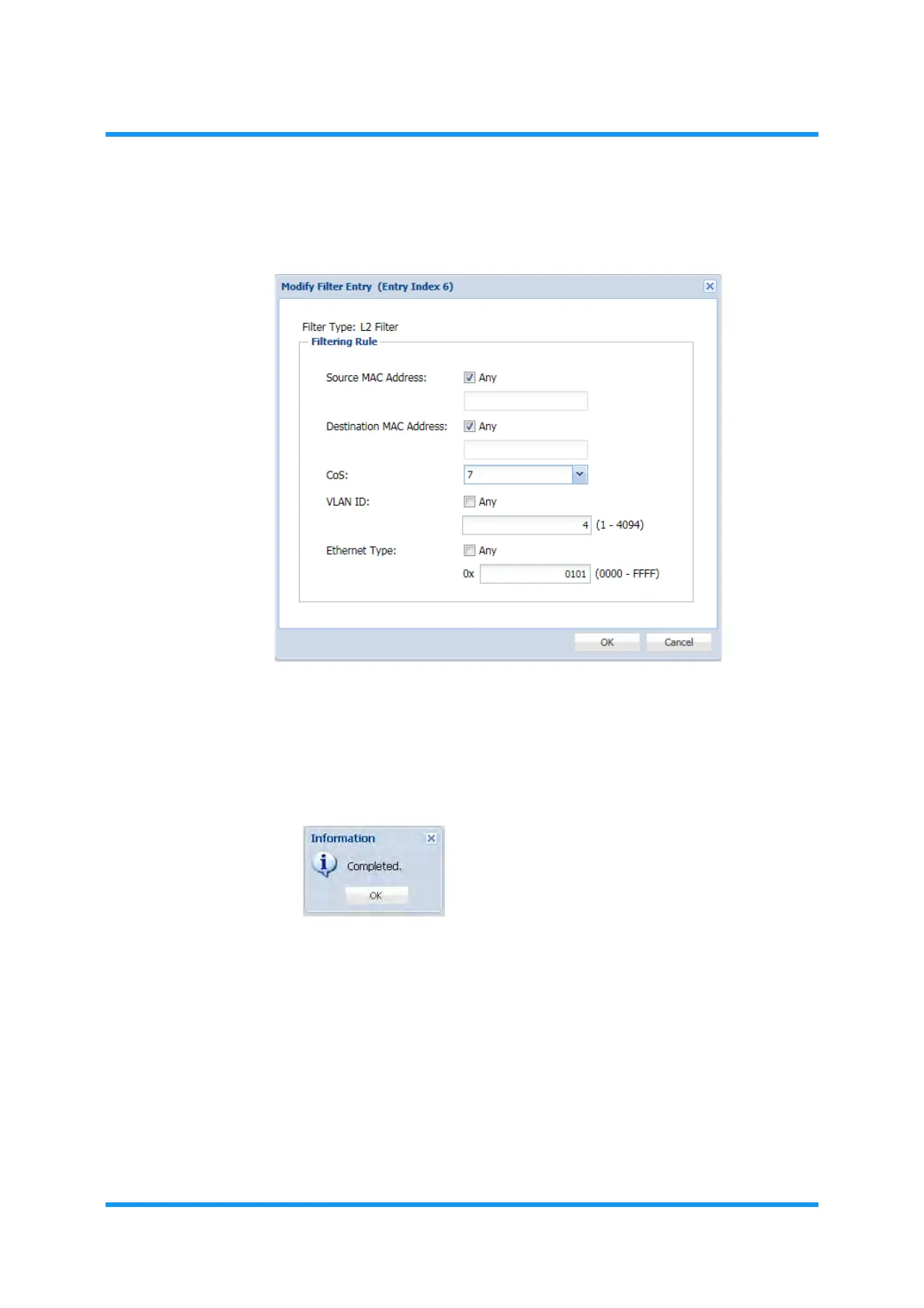

Figure 8-237 Modify Filter Entry Option Window
5. When the modification is completed, click the OK button. Information dialog
box appears.
6. Click the OK button to proceed.
Figure 8-238 Information Dialog Box
The Filter Setting window (Filter List tab) updates the information.
To Next Page
