Set ETH Function 8-175
iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING GGS-000547-01E
4. Tick a check box of the target filter, then click the OK button. Ticking a box on
top selects all.

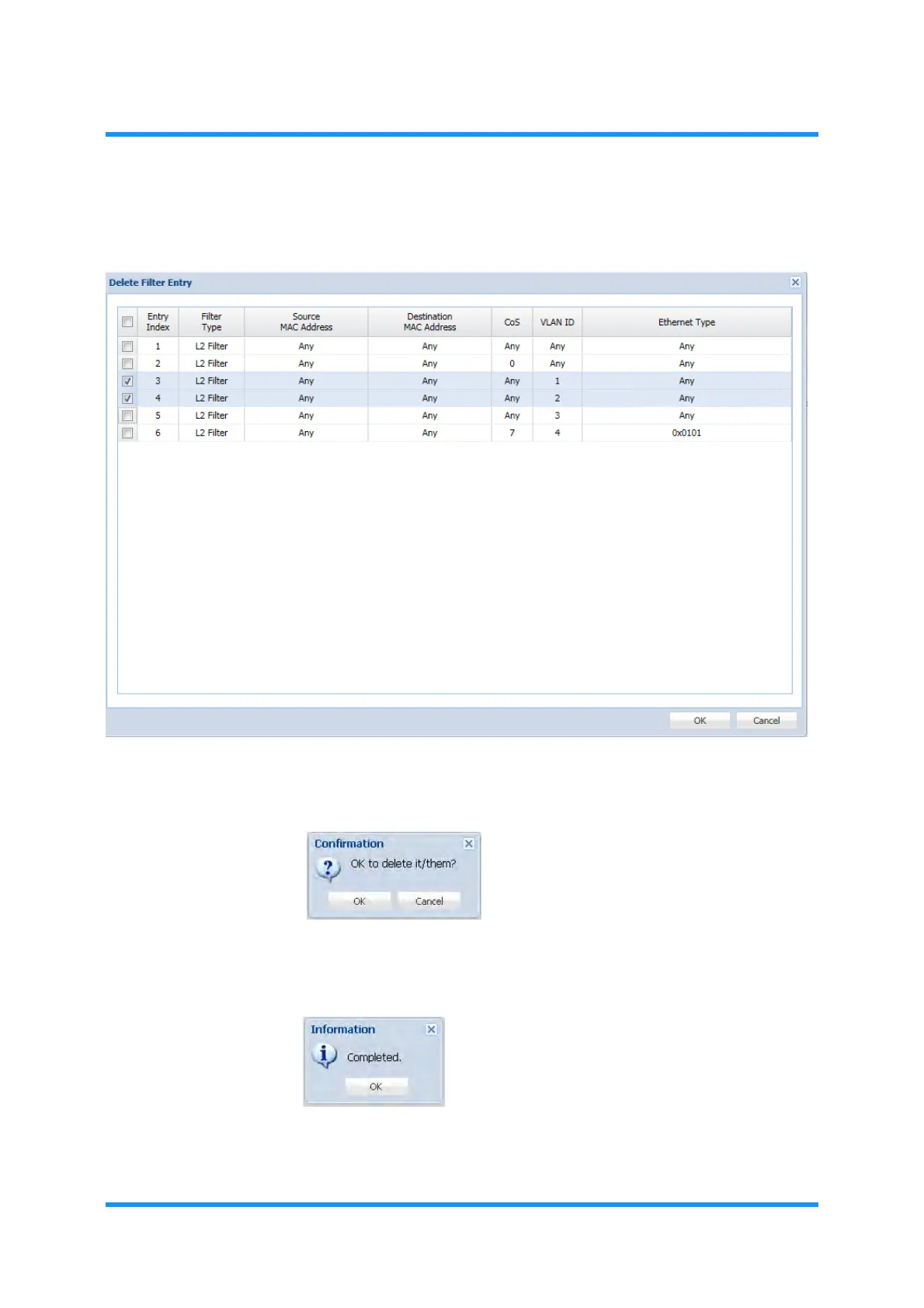

Figure 8-241 Delete Filter Entry Option Window
5. Confirmation dialog box appears. Click the OK button to proceed.
Figure 8-242 Confirmation Dialog Box
6. Information dialog box appears. Click the OK button to proceed.
Figure 8-243 Information Dialog Box
The Filter Setting window (Filter List tab) updates the information.
To Next Page
