8-184 Set ETH Function
GGS-000547-01E iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING
4. Tick (click to leave a tick in) a check box of the target filter, then click the OK
button. Ticking a box on top selects all.

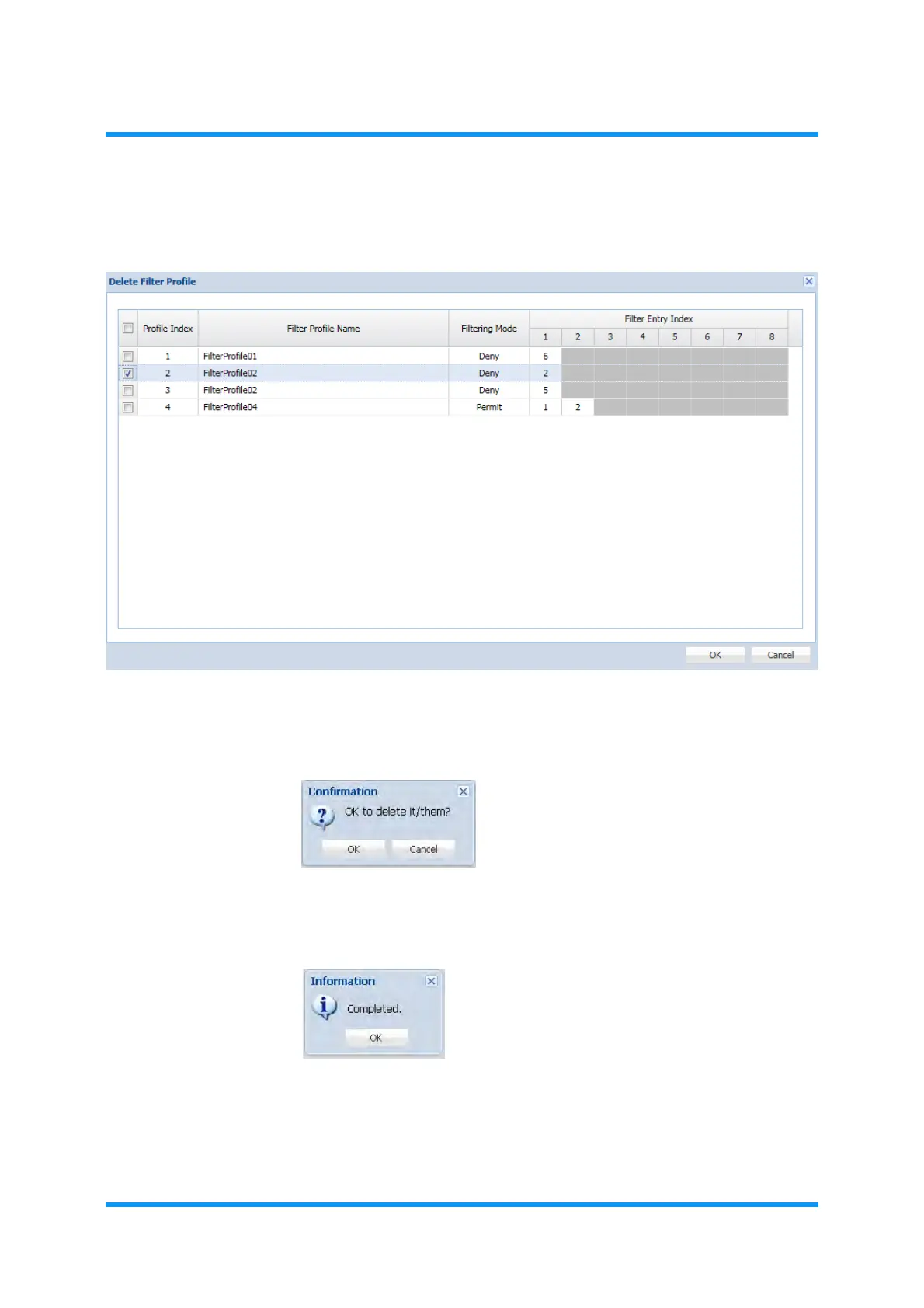

Figure 8-254 Delete Filter Entry Option Window
5. Confirmation dialog box appears. Click the OK button to proceed.
Figure 8-255 Confirmation Dialog Box
6. Information dialog box appears. Click the OK button to proceed.
Figure 8-256 Information Dialog Box
The Filter Setting window (Filter List tab) updates the information.
To Next Page
