Set ETH Function 8-207
iPASOLINK EX Advanced: SET NETWORK AND SYSTEM PROVISIONING GGS-000547-01E
4. Set Enable or Disable the Broadcast Storm Control by clicking its radio button,
then click the
OK button:

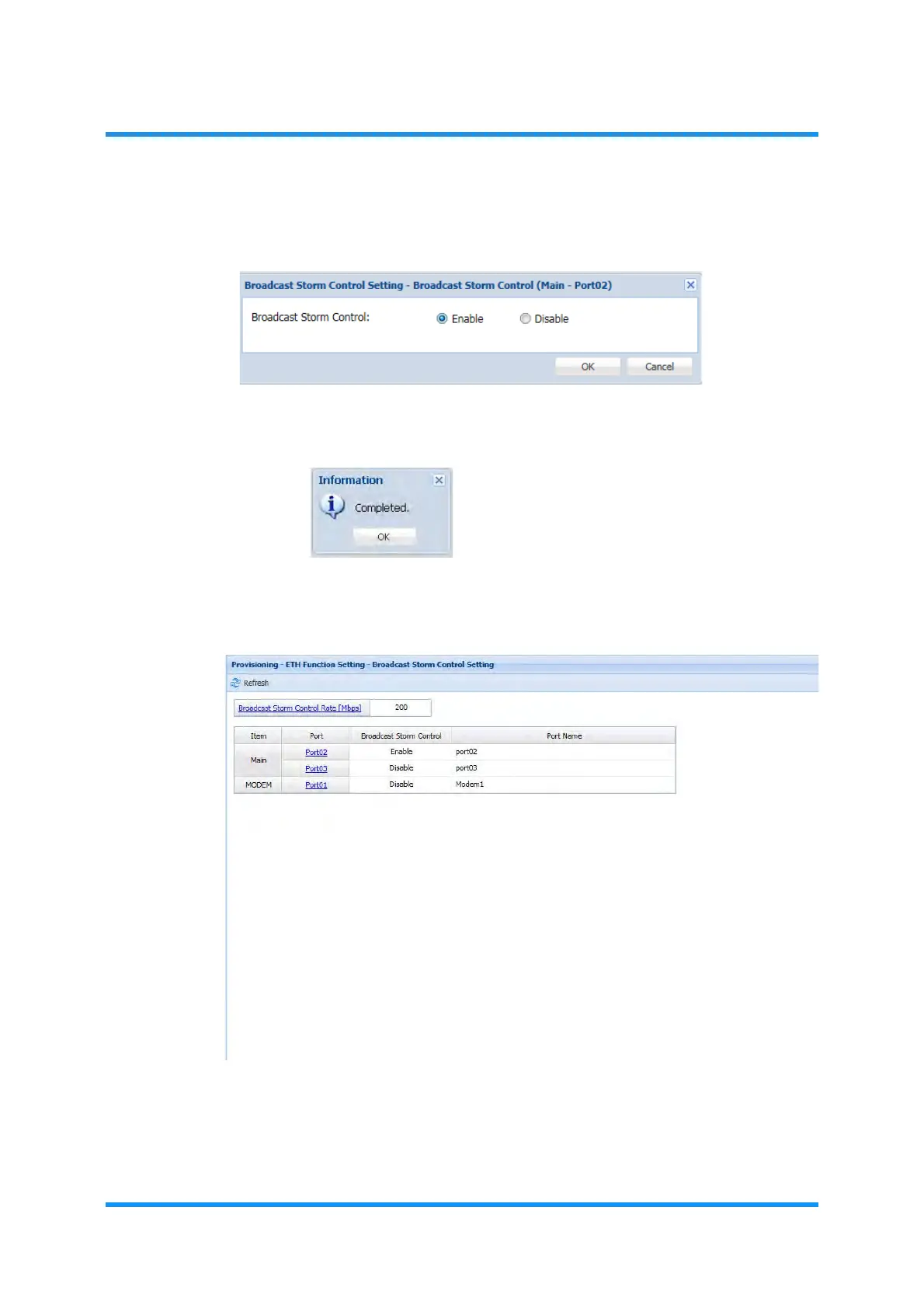

Figure 8-293 Broadcast Storm Control Option Window
5. Information dialog box appears. Click the OK button to proceed:
Figure 8-294 Information Dialog Box
6. The Broadcast Storm Control Setting window updates the information. Verify
the displayed information.
Figure 8-295 Broadcast Storm Control Setting Window
This step ends the procedure.
