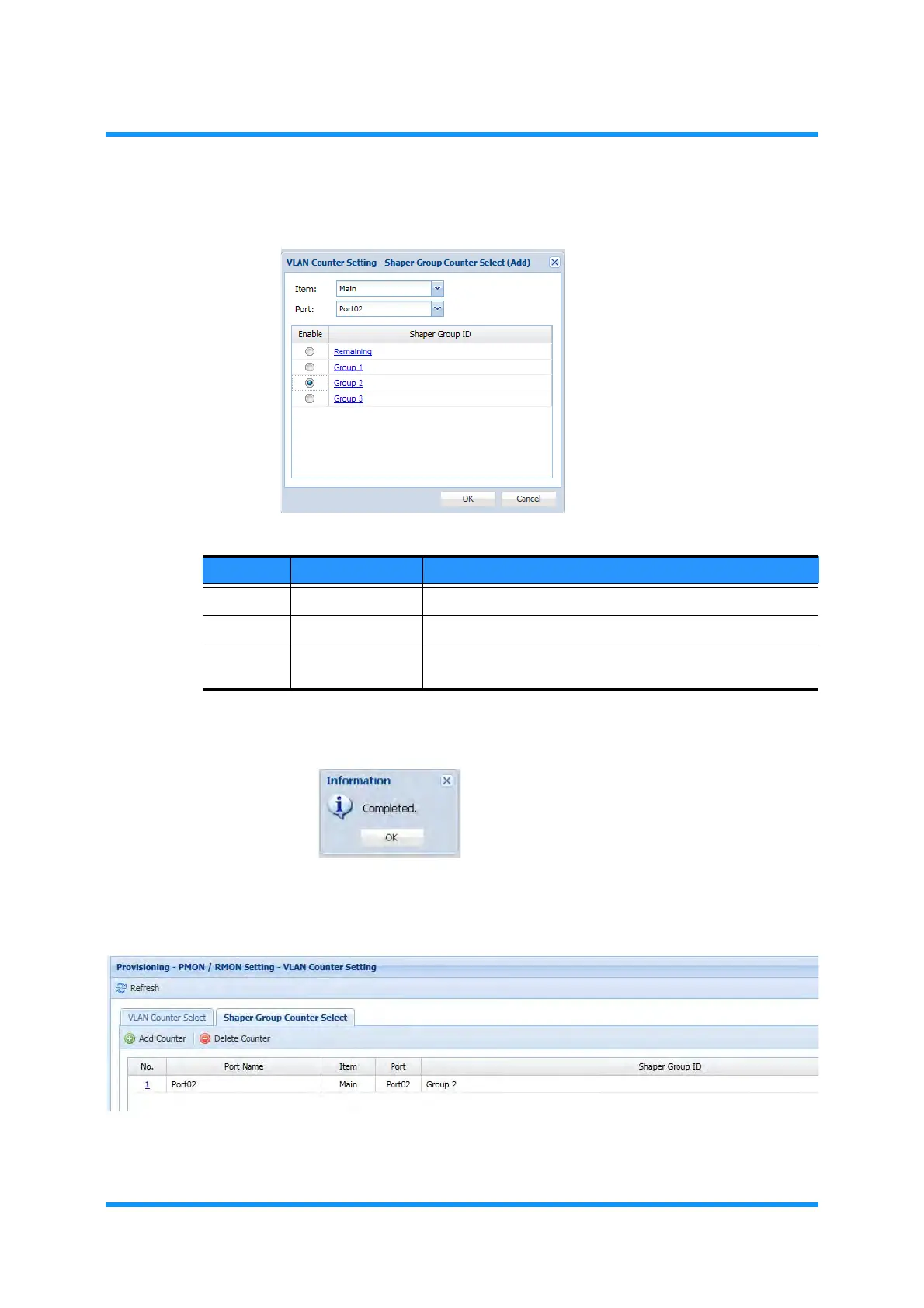

4. Assign the appropriate settings, then click the OK button:
Figure 11-31 Shaper Group Counter Select (Add) Option Window
5. Information dialog box appears. Click OK button of the dialog box to proceed.
Figure 11-32 Information Dialog Box
6. The VLAN Counter Setting window updates the information. Verify the
displayed information.
Figure 11-33 VLAN Counter Setting Window
This step ends the procedure.
Table 11-7 Shaper Group Counter Select Parameters
Parameter Value Description
Item (available Part) Select a target part to specify.
Port (available port) Select a target port to specify.
Enable (radio button) Clicking the radio button enables to count the frames that
pass through the selected VLAN.
