5-24/END CONNECT CABLES
GGS-000546-01E iPASOLINK EX Advanced: INSTALLATION

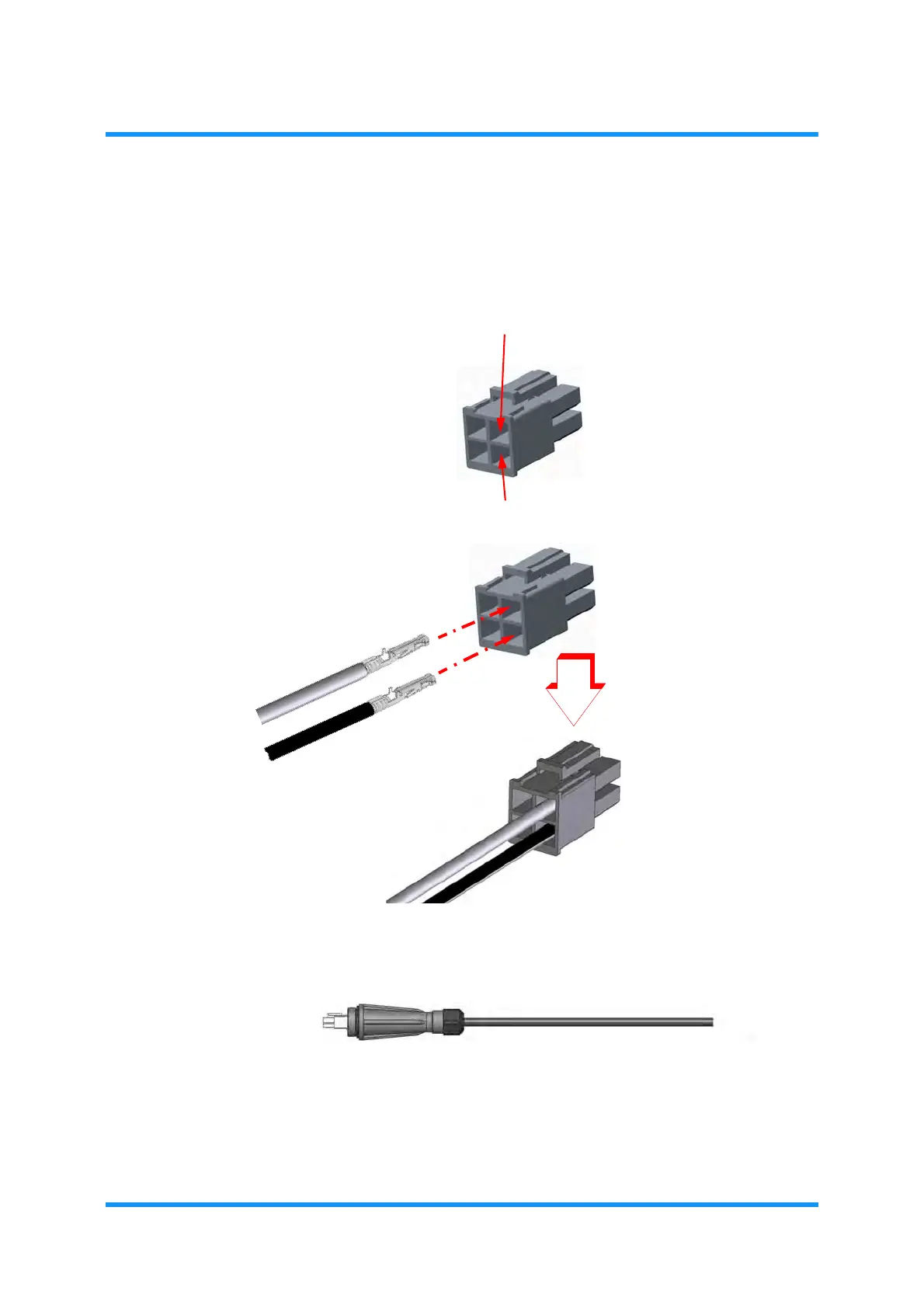

5. Insert the both contacts into the connector housing.
NOTE: The drawings below put the connector housing upside down for some
reasons. Be sure to verify the orientation of completed connector
when connecting it to the equipment.
Wear Waterproofing Plug Cover if Prepared:
This step ends the procedure.
#1
#3
POWER CONNECTOR
HOUSING (REAR SIDE)
Assemble 2-Core Cable:
To Next Page
