NEC iPASOLINK EX Advanced - Page 686

CONTROL ITEMS 4-75
iPASOLINK EX Advanced: OPERATION & MAINTENANCE GGS-000548-01E
4. Select the object type (RF) from drop-down list, and then click the Next
button.

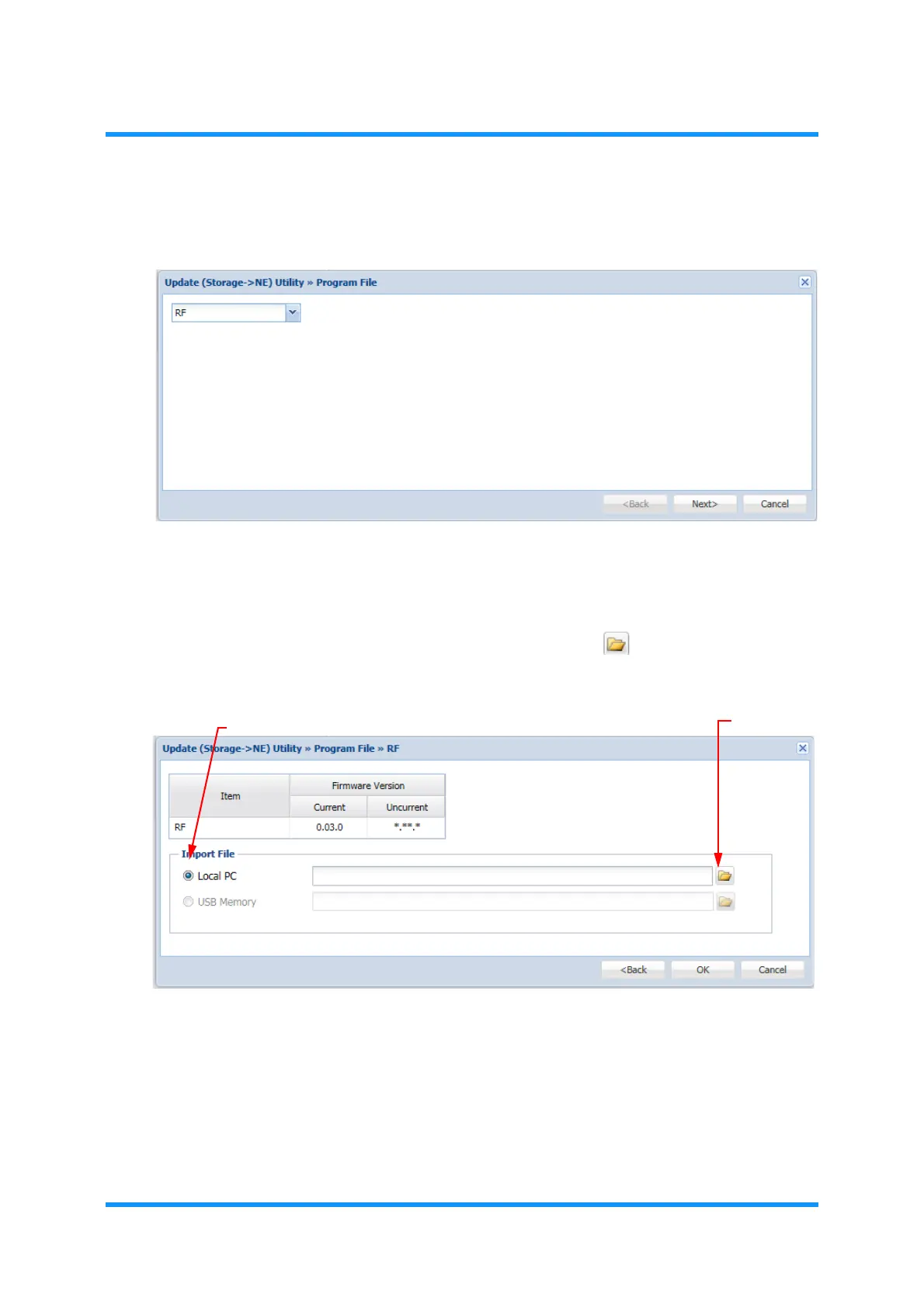

Figure 4-118 Program File Option Window
5. The Program File option window for selecting a source. In the Import File
option box, select the media (Local PC or USB Memory) from which the file is
transferred, and then click the file icon button ( ).
Figure 4-119 Program File Option Window
An option window to choose a file appears.
Import File option box
file icon
