4-100 CONTROL ITEMS
GGS-000548-01E iPASOLINK EX Advanced: Operation & Maintenance
4. Confirm the information, then click the OK button.

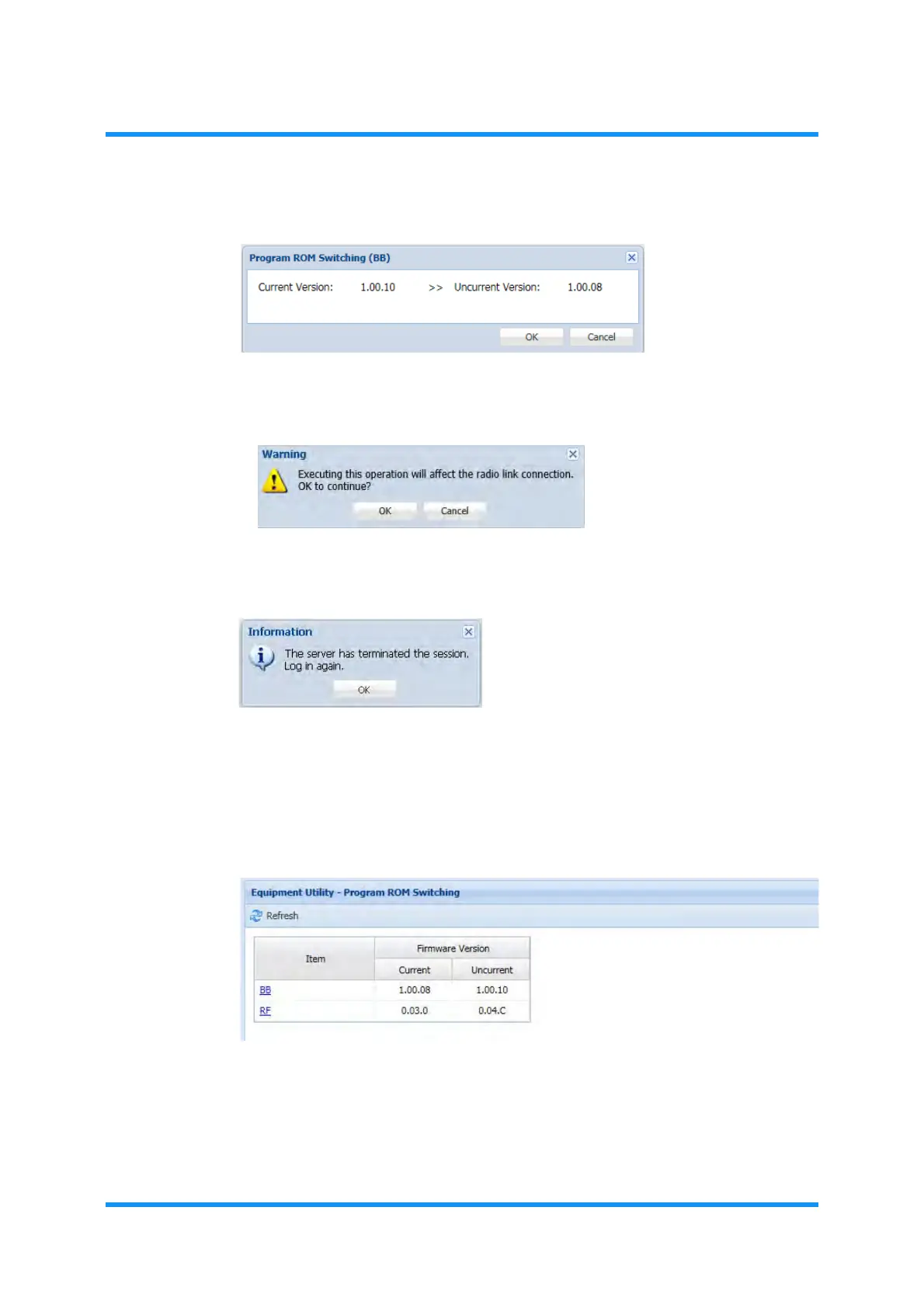

Figure 4-167 Program ROM Switching (BB) Window
5. Warning message dialog box appears. Click the OK button to execute the
auto-revert process.
Figure 4-168 Warning Message Dialog Box
6. Information dialog box appears. Click the OK button. The WebLCT will shut
down automatically.
Figure 4-169 Information Box
7. When the iPASOLINK EX/A restarts, launch the WebLCT and log in to the
iPASOLINK EX/A again.
8. Select the
Equipment Utility Program ROM Switching from the WebLCT
menu. The Program ROM Switching window appears.
9. Verify the current version of the BB Firmware:
Figure 4-170 Program ROM Switching Window
10. When confirmed, click the Maintenance tool button on the WebLCT tool bar to
exit from the Maintenance Mode.
11. Confirm that the
MAINT indicator on the tool bar changes from orange to
white.
This step ends the procedure.
