4. Install the four screws previously removed.
5. Align the brackets with the holes on the sides of the 9.5 inch
Basic Chassis (CHS2UG). Install 2 M4 x 14 screws.

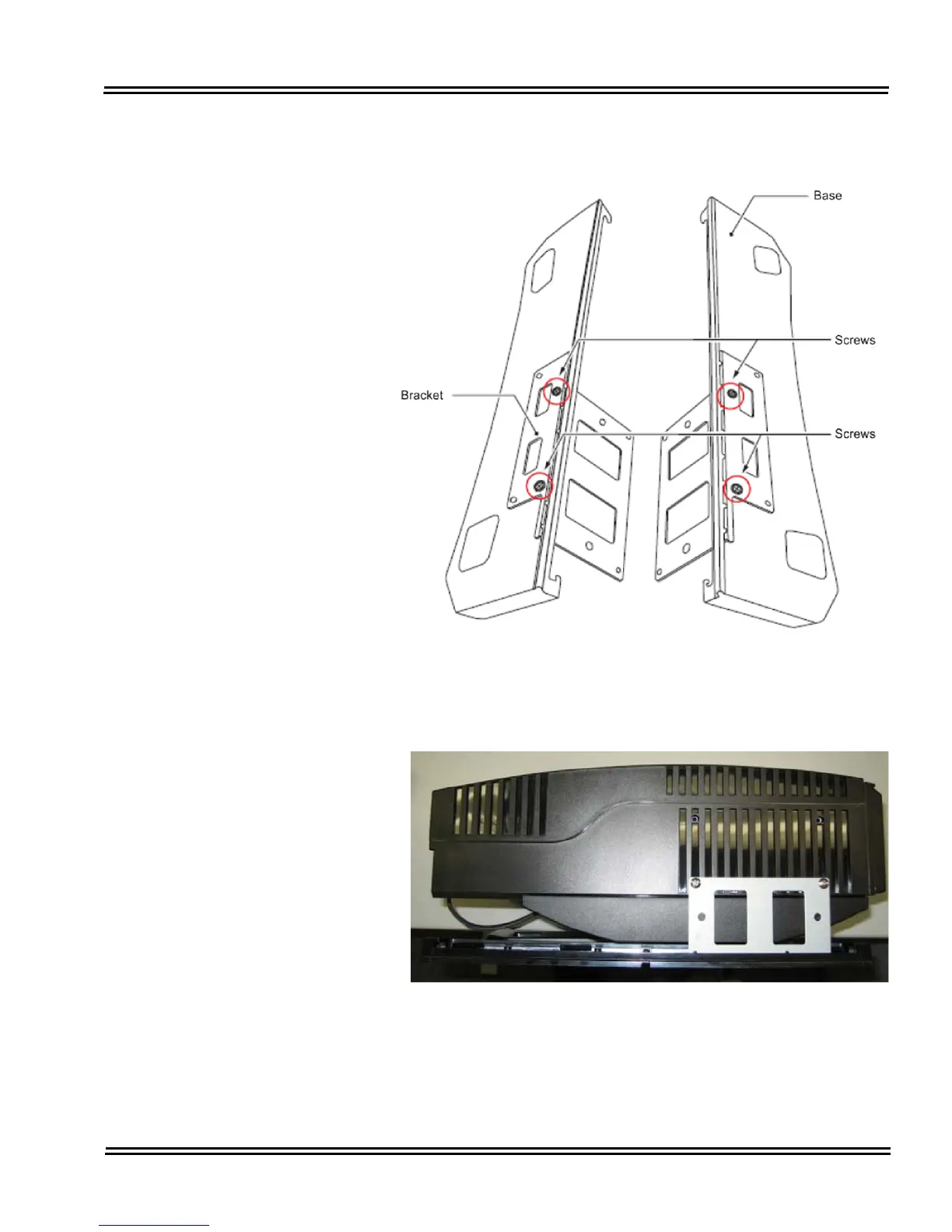

Figure 3-44 Install Screws (Small Batt Box)
Figure 3-45 Wall Mount – Upper Side (Small Batt Box)
