9.2 Wall-Mounting the SLT Adapter
1. Unplug the two line cords from the SLT Adapter.
2. Remove the two screws from the front of the SLT Adapter.
3. Lift the cover off the adapter.

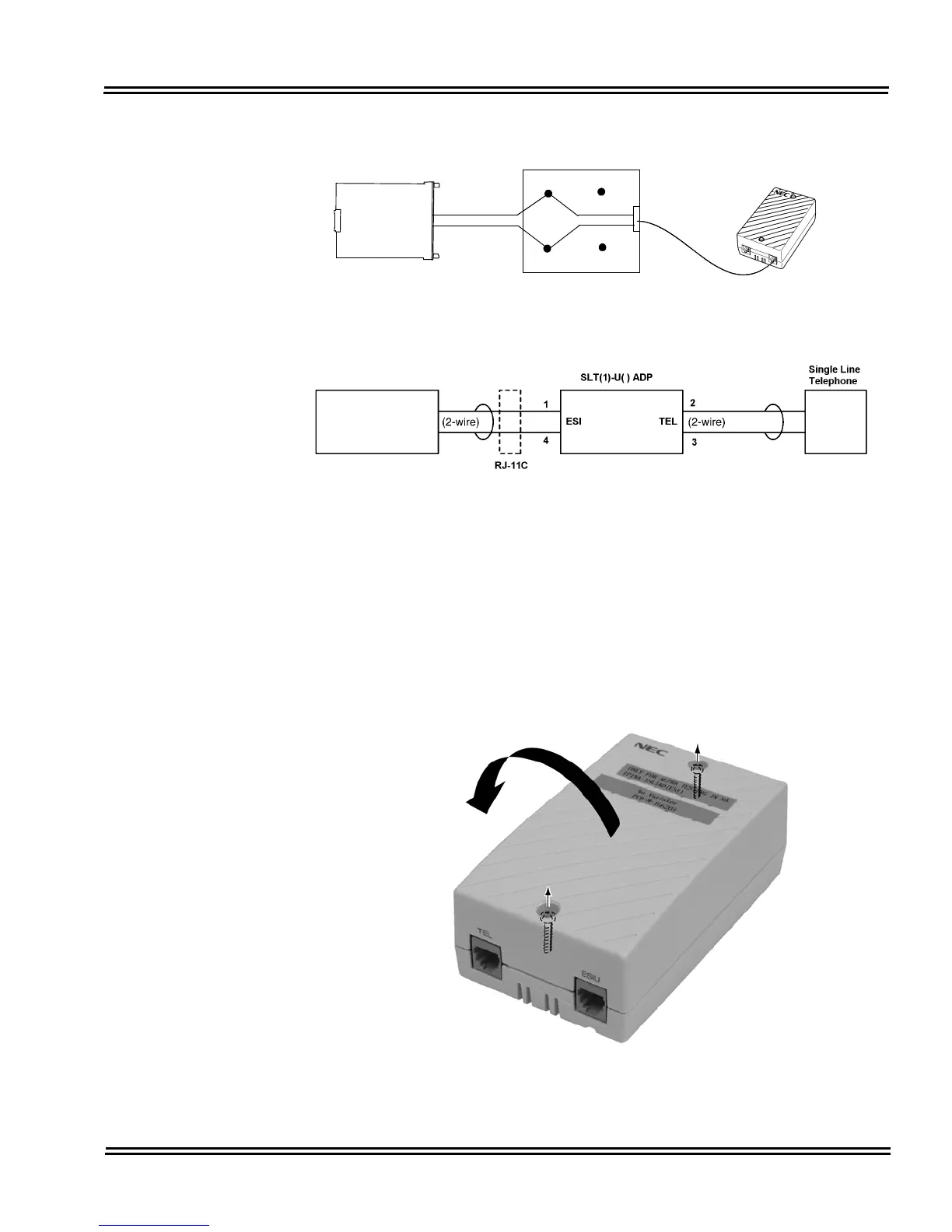

Figure 5-147 Connecting the SLT Adapter
Figure 5-148 Removing the Cover
3
4
Modular Terminal Connections
Single Line Telephone Connections
SLTII(1)-U( ) ADP
GN
RD
Y
BL
T
R
ESI Port
Base
Cord
Modular Terminal
3
4
Modular Terminal Connections
To ESIU
GN
RD
Y
BL
ESI Port
Base
Cord
Modular Terminal
ESIU Port
ESIU
GCD-8DLCA or
GCD-16DLCA
