NEC Univerge SV9100

Issue 1.2 UNIVERGE SV9100
4 - 44 Installing the SV9100 Blades
4.3.4 Connectors
Table 4-21 GCD-4LCA/GCD-8LCA RJ-61 Cable Connector Pin-Outs
show the pin-outs for the RJ-61 connector. Refer to Figure 4-11
GCD-4LCA/GCD-8LCA Blade on page 4-40 for illustrations showing
the location of the connectors and the pin number locations on the
SLIU blades
4.4 GPZ-4LCA/GPZ-8LCE (4-Port/8-Port SLI Daughter Boards)

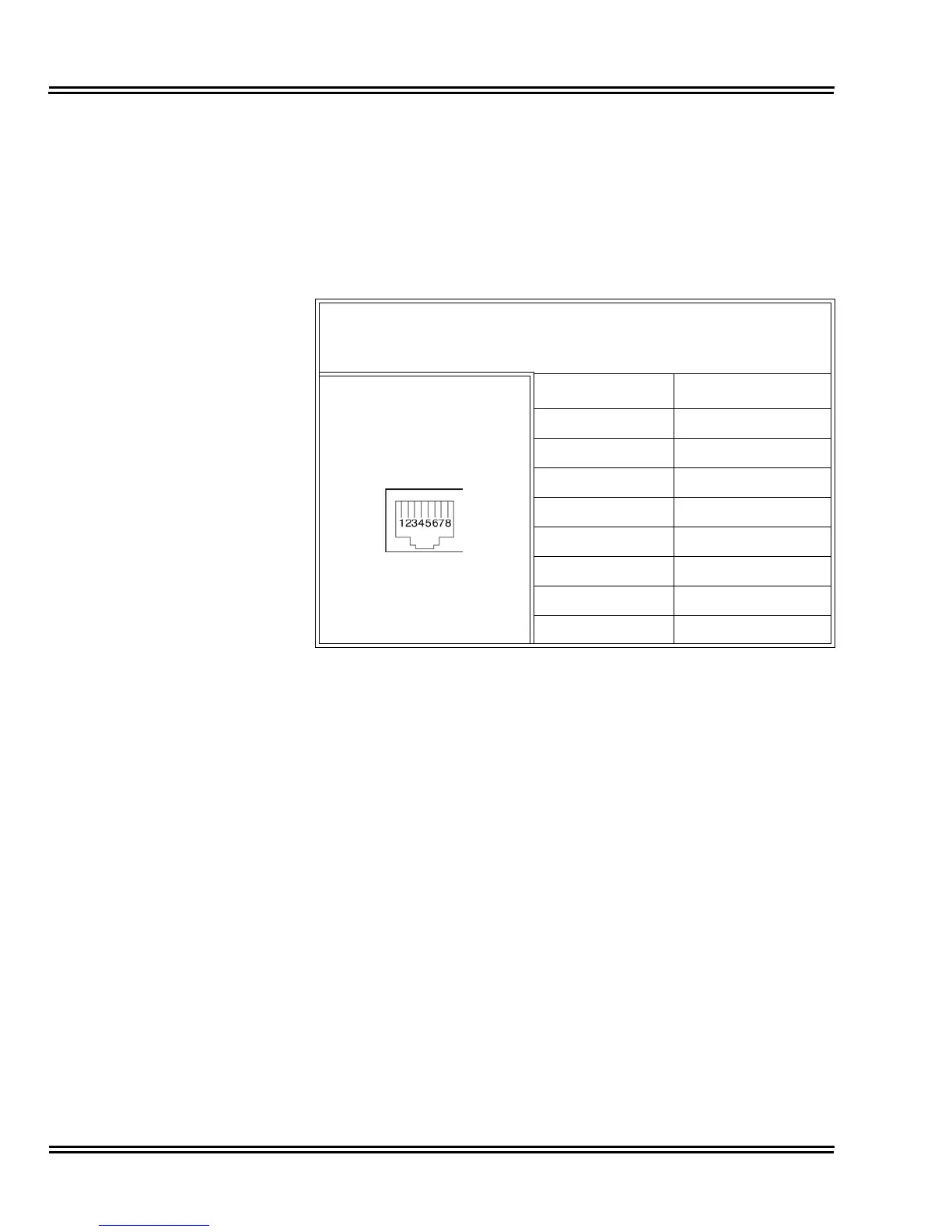

Table 4-21 GCD-4LCA/GCD-8LCA RJ-61 Cable Connector Pin-Outs
RJ-61 Cable Connector
8SLIU – CN2 (ports 1~4)
8SLIU – CN2 (ports 1~4), CN3 (ports 5~8)
Pin No. Connection
1 T4 (Tip for port 4)
2 T3 (Tip for port 3)
3 T2 (Tip for port 2)
4 R1 (Ring for port 1)
5 T1 (Tip for port 1)
6 R2 (Ring for port 2
7 R3 (Ring for port 3)
8 R4 (Ring for port 4)
