5 - 100 Installing DT Series Digital and IP Multiline Terminals
DSS WM-L UNIT Using Screws).
5.2.12.2 Mount DCL-60-1/DCZ-60-2 CONSOLE on Wall Plate
using DSS WM-L UNIT
1. Locate the screw holes on the base and hang the cover over
the screws on the wall plate as illustrated in Figure 5-110
Attach DSS WM-L UNIT to Wall Plate.
è Because of variation in wall plates, this method is not
recommended.
2. Plug one end of the line cord into the wall receptacle. Leave

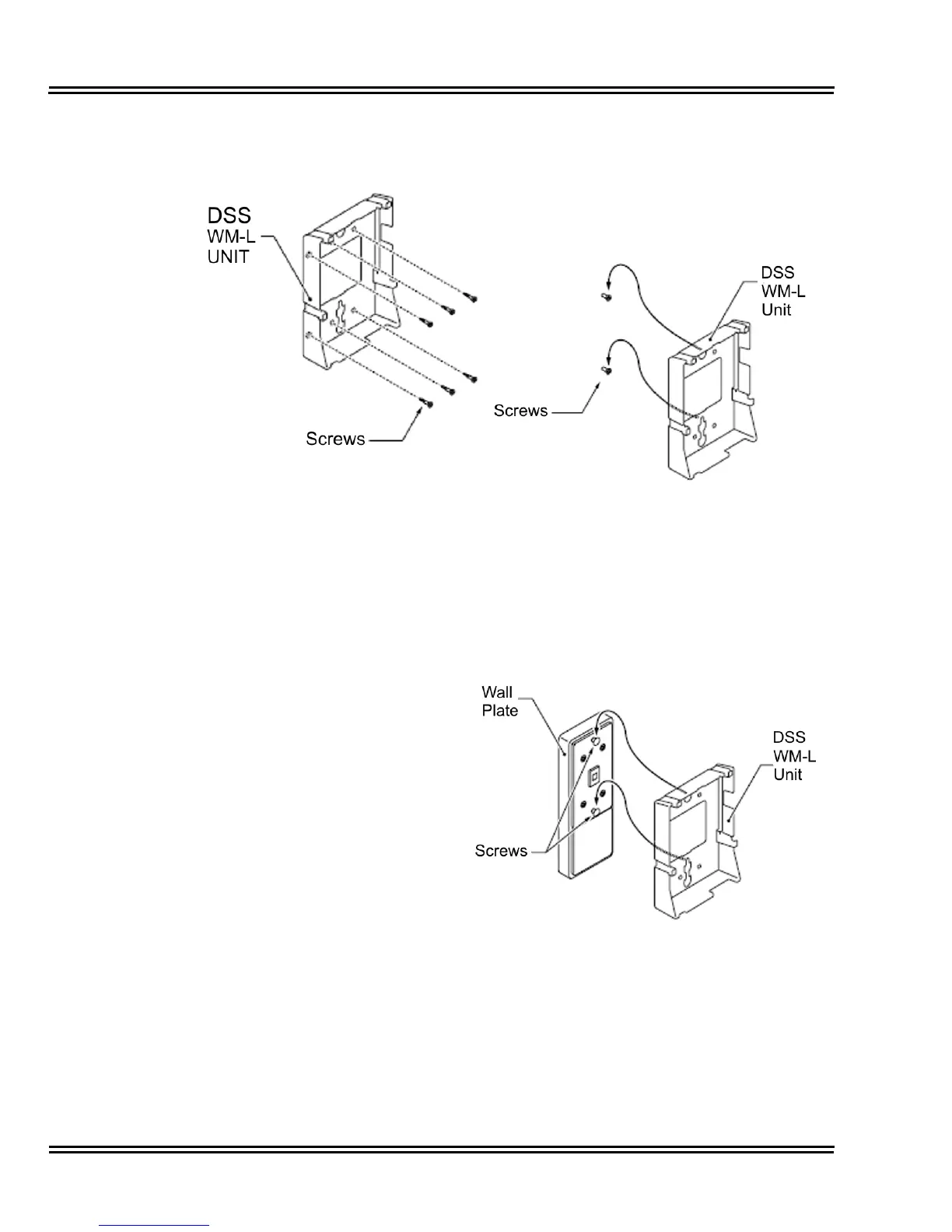

Figure 5-109 Attach DSS WM-L UNIT Using Screws
Figure 5-110 Attach DSS WM-L UNIT to Wall Plate
