UNIVERGE SV9100 Issue 1.2
System Hardware Manual 5 - 101
about eight inches of cord and bundle the rest.
3. Plug the opposite end of the line cord into the DCL-60-1/
DCZ-60-2 CONSOLE as illustrated in Figure 5-112 Plugging
Cable into DCL-60-1/DCZ-60-2 CONSOLE.

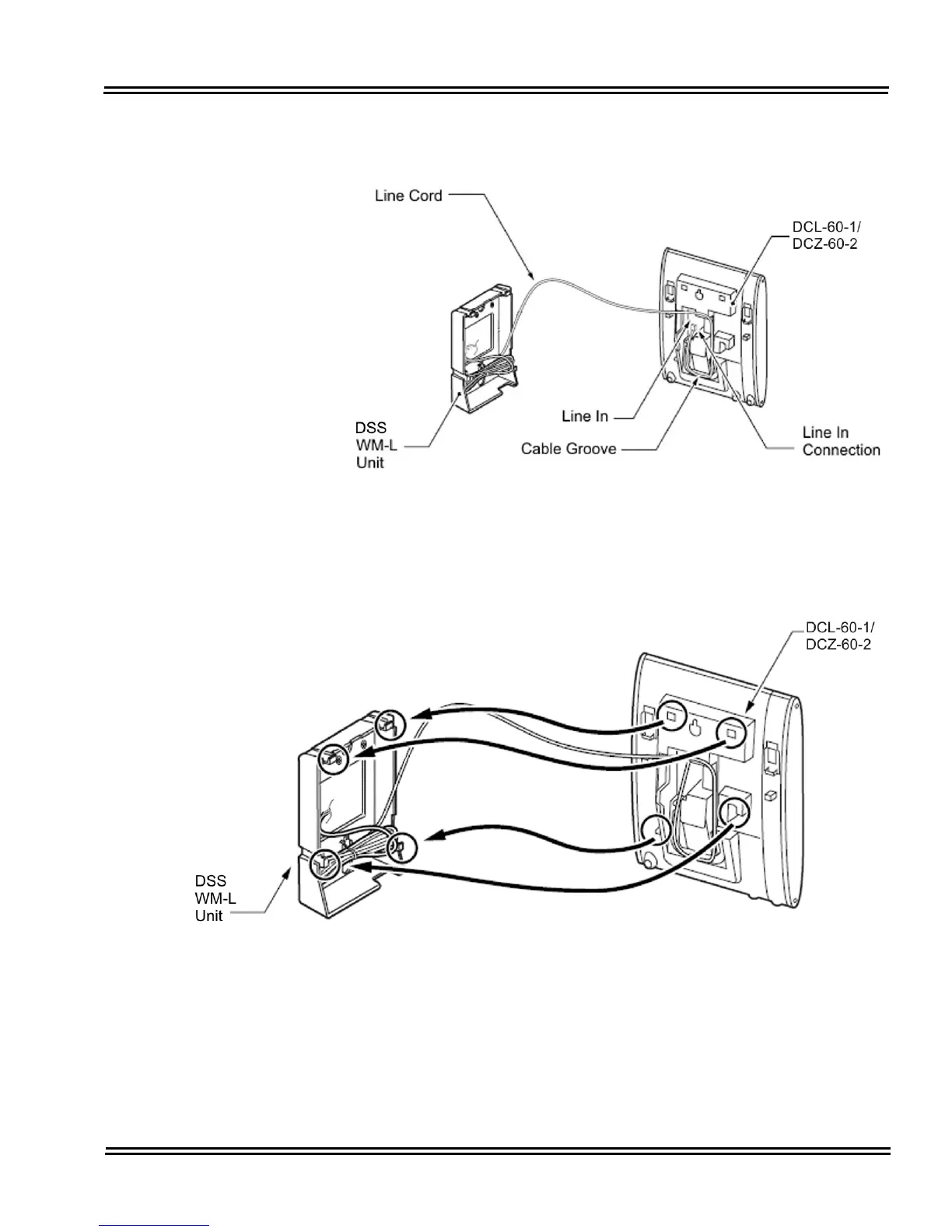

Figure 5-111 Plug Cable into Wall
Figure 5-112 Plugging Cable into DCL-60-1/DCZ-60-2 CONSOLE
