SECTION 9 SINGLE LINE TELEPHONE
9.1 Installing the SLT Adapter
The Single Line Telephone adapter provides an interface for Single Line
Telephones and other similar devices from an ESI channel.
This adapter can be connected to any ESI port.
1. Connect one end of the RJ-11 to the ESI port on the chassis and one
end to the ESI jack on the SLT Adapter.
2. Connect one end of a second RJ-11 to the TEL jack on the SLT Adapter
and the other end to the Single Line Telephone.

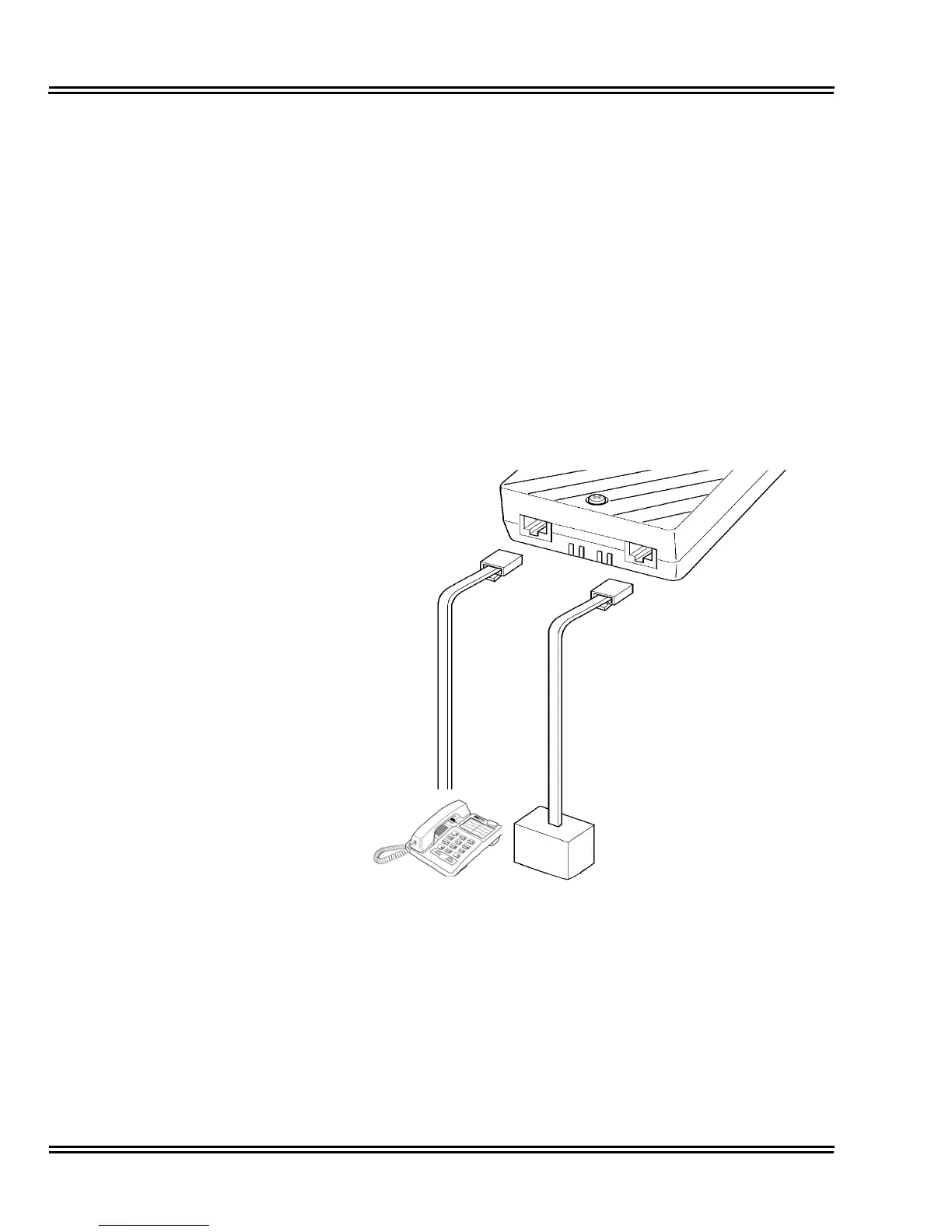

Figure 5-146 Installing SLT Adapter
SLTII(1)-U( ) ADP
E
S
I
RJ-11
RJ-11
2-wire 2-wire
ESI
T
E
L
