Issue 1.2 UNIVERGE SV9100
3 - 58 Installing the SV9100 Chassis
12. Reinstall access panel containing the fan and secure with supplied
screw.
13. Connect grounding and AC power cable.
6.2 Installing the External Batteries 19” (CHS2UG) Chassis
An optional (locally procured), external battery source can be used to provide
power during a power failure.
CHS LARGE BATT BOX (Backup time = Three Hours for 30 Terminals)
6.2.1 Floor Mounting the CHS LARGE BATT BOX

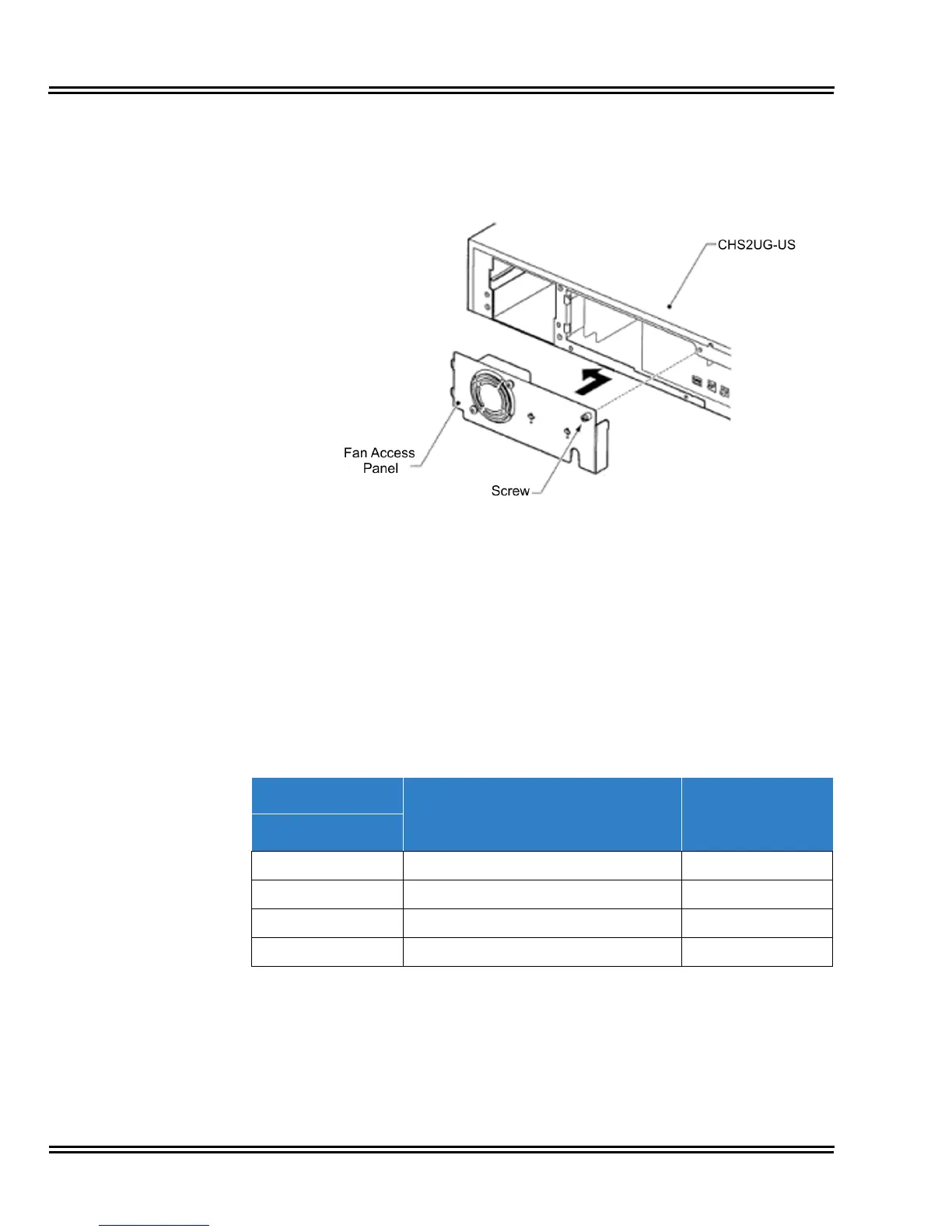

Figure 3-77 Installing the Access Panel
Table 3-2 CHSG LARGE BATT BOX Capacity
Configuration
Battery Capacity
(Number of Batteries)
Number of
CHSG LARGE
BATT BOX
SV9100
2U x 1 21AH (=3 sets of [2x12V-7AH]) 1
2U x 2 42AH (=6 sets of [2x12V-7AH]) 2
2U x 3 63AH (=9 sets of [2x12V-7AH]) 3
2U x 4 84AH (=12 sets of [2x12V-7AH]) 4
è One CHSG LARGE BATT BOX can be used for 4 x 2U chassis for approximately 45
minutes.
