Issue 1.2 UNIVERGE SV9100
5 - 96 Installing DT Series Digital and IP Multiline Terminals
5.2.10 WM-L UNIT Attached to Wall Plate
The WM-L UNIT (Wall Mount Unit) is used to attach any DT Series
multiline terminal to the wall plate This unit connects to the back side
of the telephone.
When optional adapters are used, the multiline terminal must be
installed on the wall plate using the WM-L UNIT.
1. Plug line cord in the wall plate receptacle. Leave about eight
inches of cord and bundle the rest.
2. Feed the line cord through the opening in the WM-L UNIT.
3. Plug the line cord into the Multiline Terminal as illustrated in
Figure 5-103 Plugging in Line Cord.
4. Align the four cutouts with the four tabs on the WM-L UNIT
(refer to Figure 5-104 Cutouts for WM-L UNIT on page 5-97).

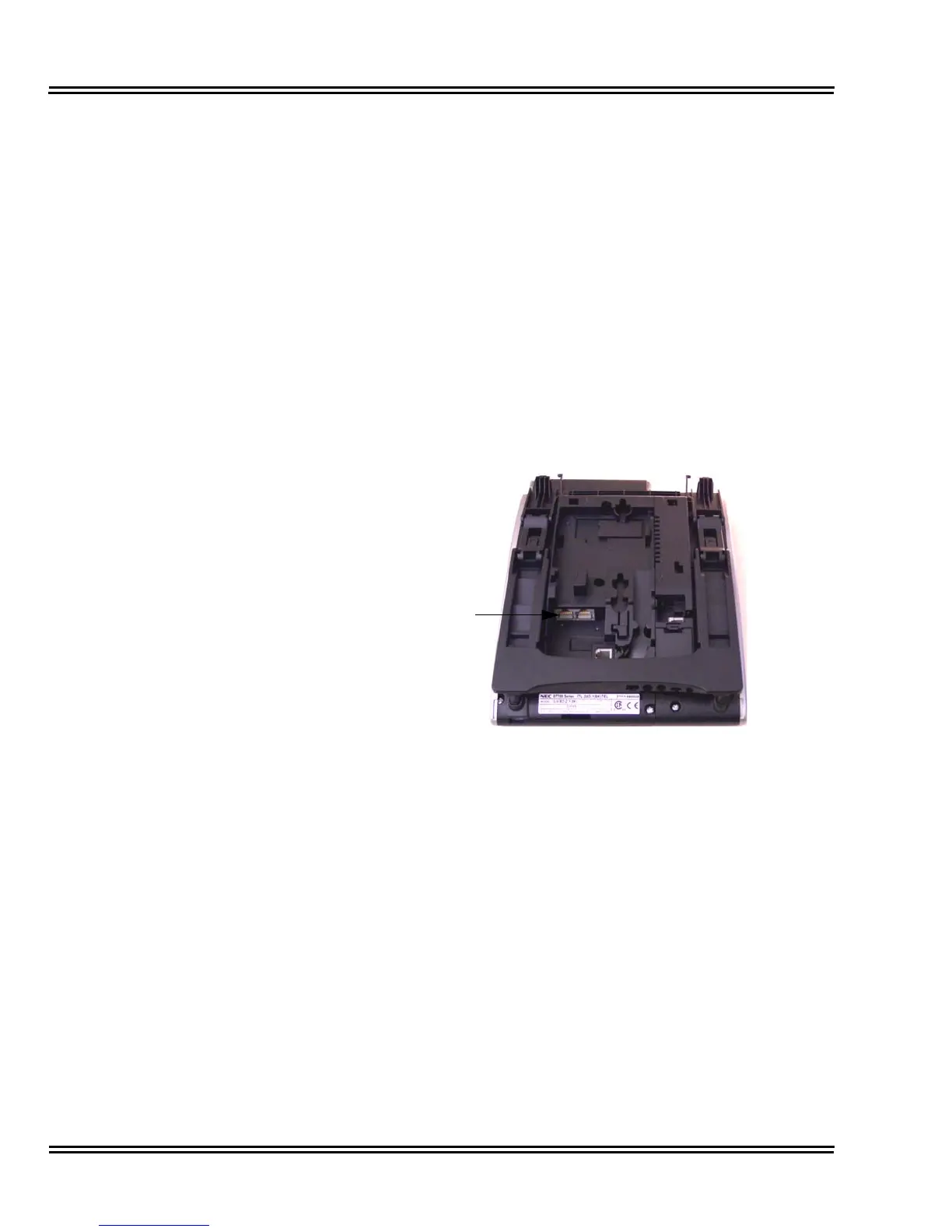

Figure 5-103 Plugging in Line Cord
