SECTION 6 OPTIONAL BLADES
6.1 CD-VM00 (Voice Mail and Server)
6.1.1 Description
This blade is a PC platform installed in the UNIVERGE SV9100 that contains
data storage for voice recording and application software supporting a
maximum of 16 ports.
A digital signal processor/voice processing section handles the following
functions:
p DTMF detection
p DTMF generation
p General tone detection
p FAX CNG tone detection
p PCM compression for audio recording/playback

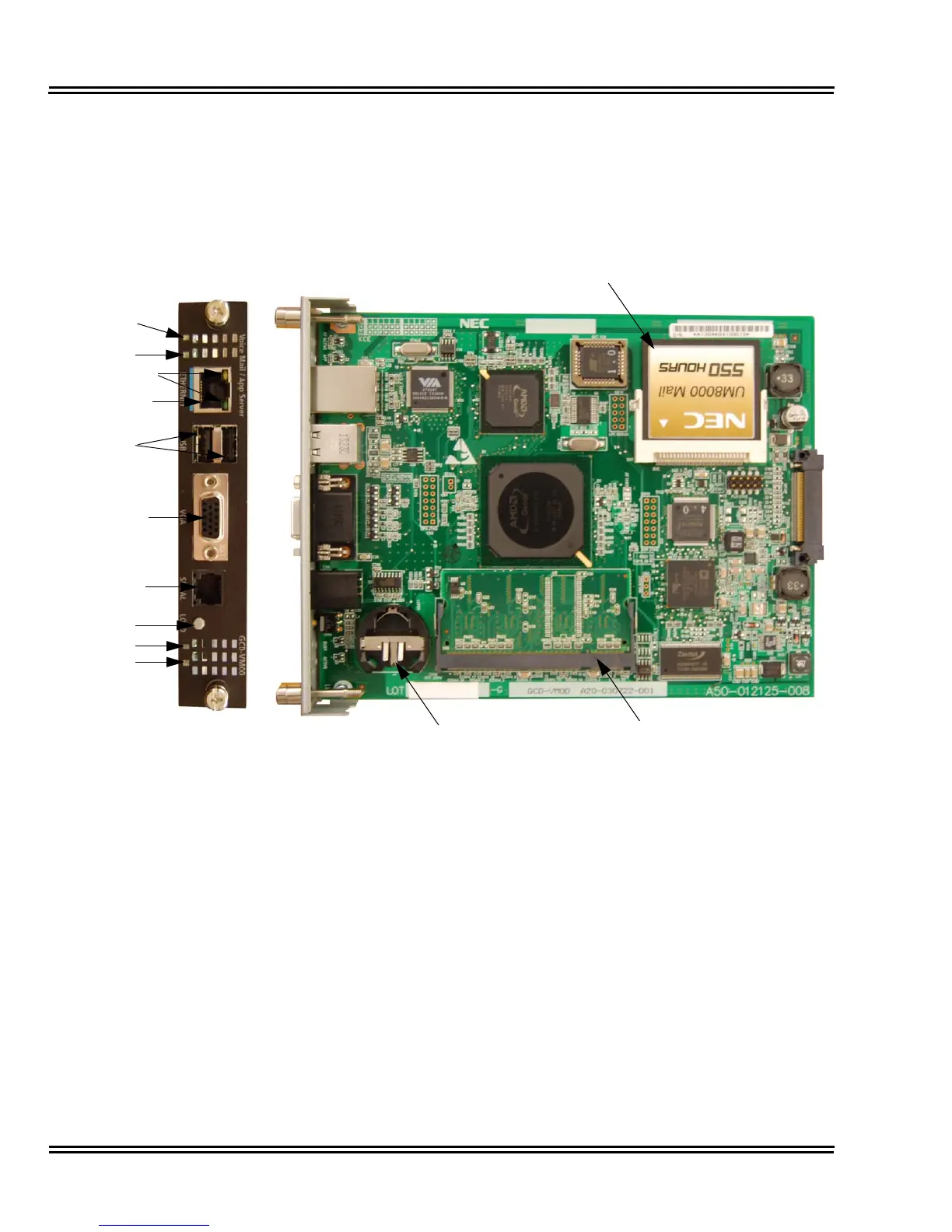

Figure 4-25 GCD-VM00 Blade
Flash Card
Memory
Battery Socket
Active LED
WAN
Busy LED
RJ-11/Serial
Load
VGA Monitor
USB
RJ-45/10/100
Ethernet LEDs
APP LED
CF Active
Drive LED
