Issue 1.2 UNIVERGE SV9100

4 - 36 Installing the SV9100 Blades

4.2 GPZ-8DLCB (Digital Station Daughter Board)

4.2.1 Description

The GPZ-8DLCB daughter board provides eight digital extensions.

This daughter board is installed on the GCD-8DLCA and expands

the port capacity for the combined blades to 16.

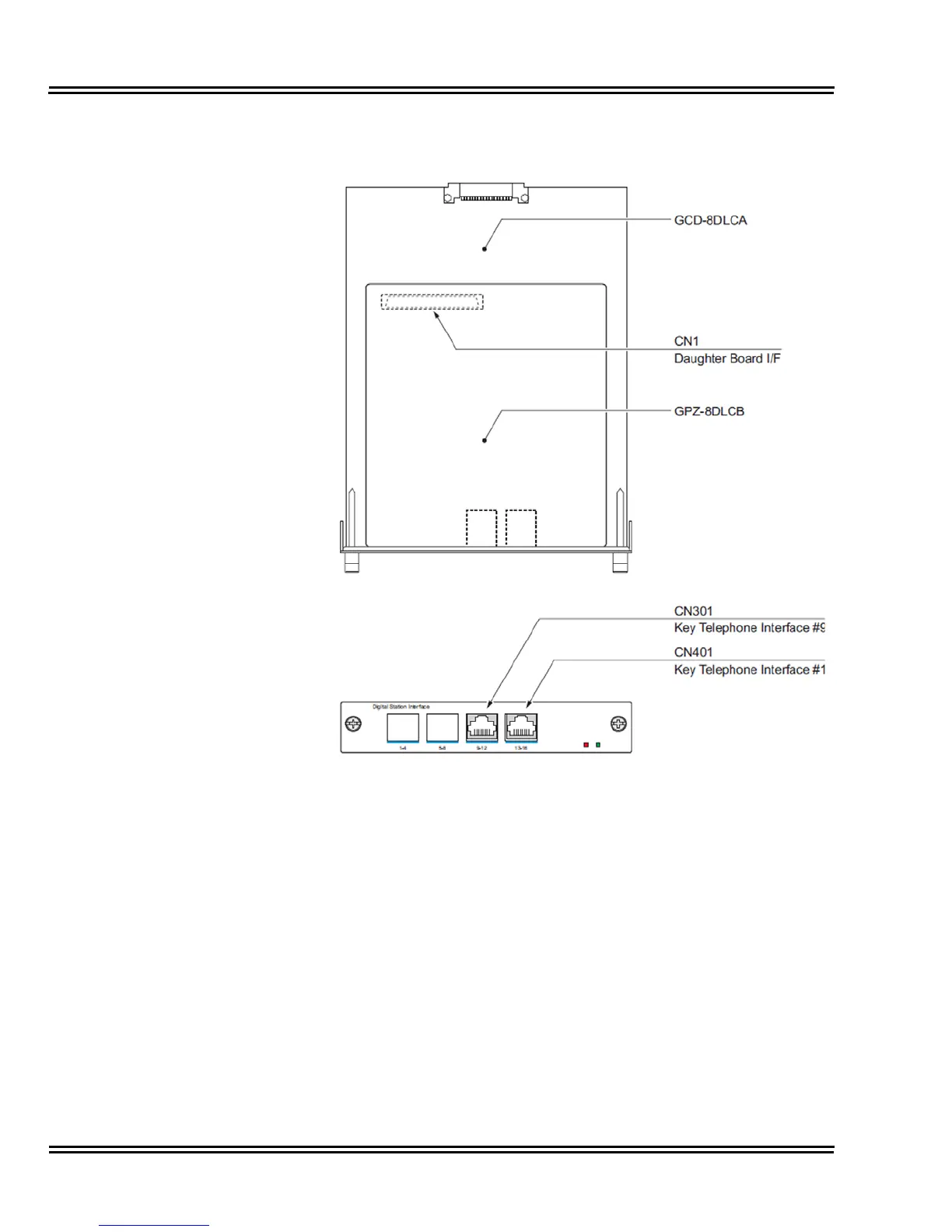

Figure 4-10 GPZ-8DLCB Blade
