4.12.1.2 Wall Mounting the Multiline Terminal
1. Plug line cord in the wall receptacle. Leave about
eight inches of cord and bundle the rest as shown in
Figure 5-66 Bundling the Line Cord.
2. Ensure the Tilt Legs are in the flat (unused
position).
3. Plug the line cord into the Multiline Terminal as
illustrated in Figure 5-67 Plugging in Line Cord.
4. Align the two holes on the back of the multiline
terminal with the two screws on the wall plate and
slide downward (refer to Figure 5-68 Mount Multiline
Terminal Wall on Wall Plate on page 5-72).

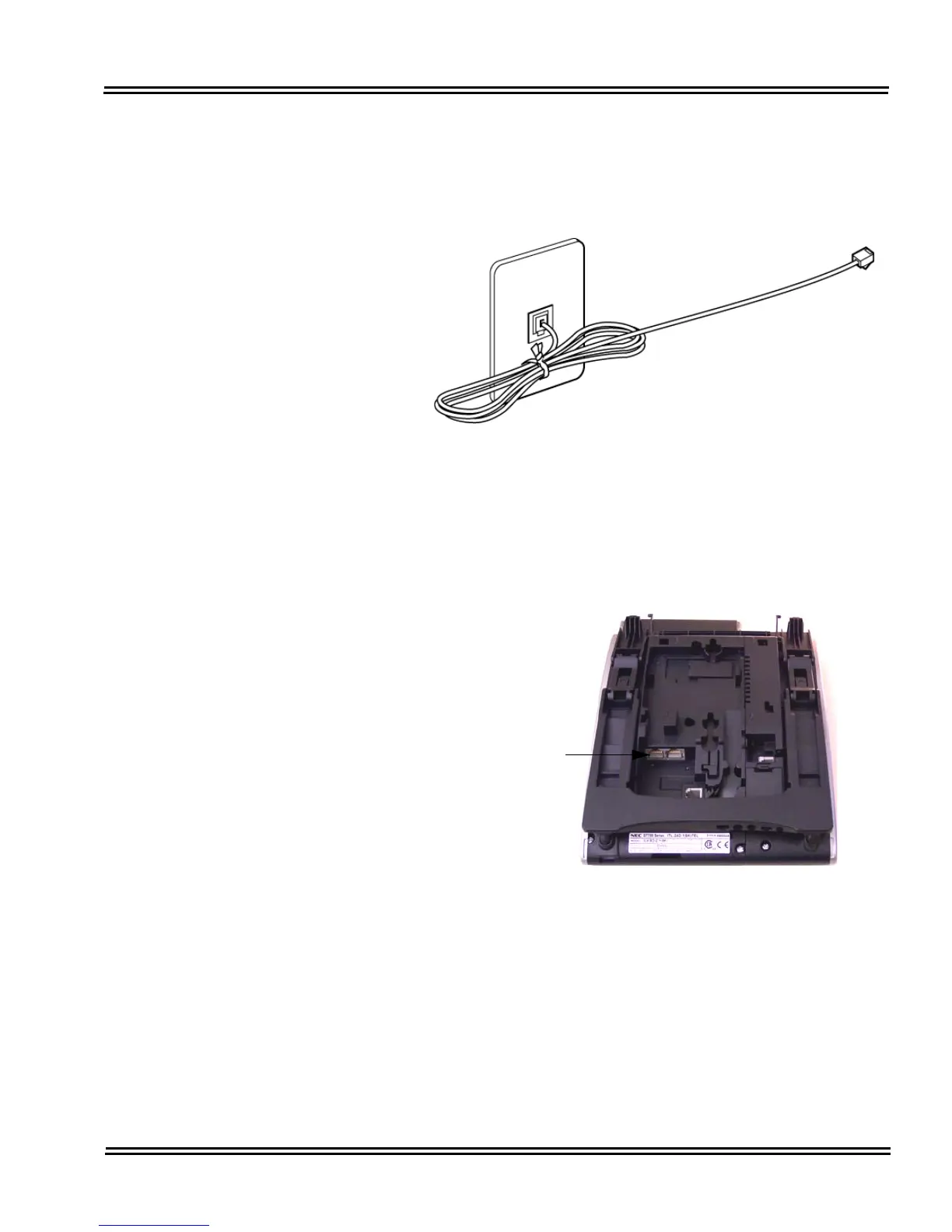

Figure 5-66 Bundling the Line Cord
Figure 5-67 Plugging in Line Cord
