 NEC power supply PoE-managed switch (BlueFire 200/24) (in-line and
spare pair detection)
 Router Blade (spare pair detection)
 Cisco Data Switch – CDP supported (in-line and spare pair detection)
 In-Line Power Adapter
11.2.1 Conditions
 Only IP telephones supported by center feed can be used.
 This adapter cannot be used with the H.323 telephones.
 When center feed is used, unplug the adapter from the
ethernet switch before changing the SW1 setting on the back of
the adapter.
 The ILPA-R adapter is intended for use with IP phones and IP
Adapters. Installing any other device into the telephone port of
the ILPA-R may result in damage to the device.
 When powering an IP phone using an ILPA-R adapter, the
phone should not
get connected to a port on the Router Blade.

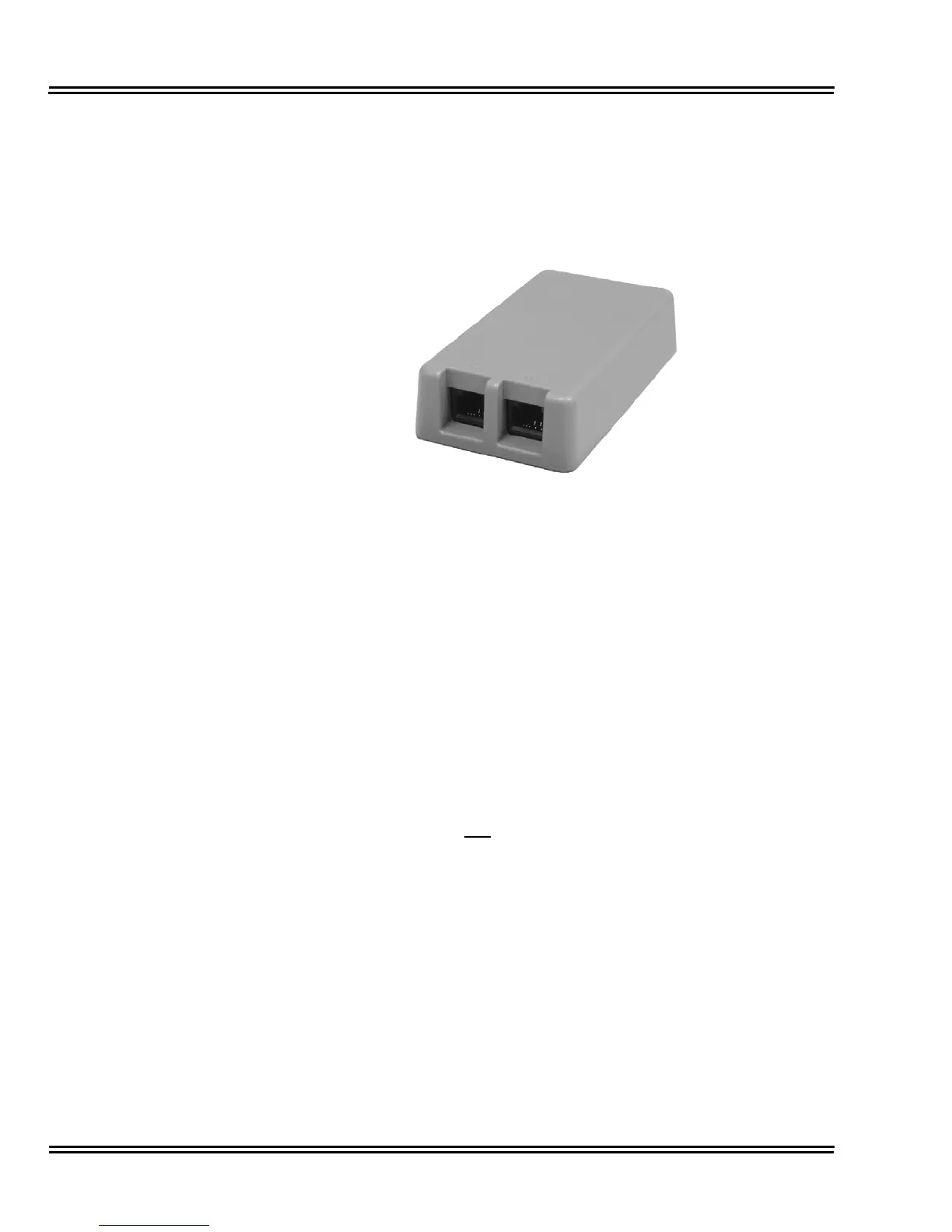

Figure 6-20 In-Line Power Adapter
