UNIVERGE SV9100 Issue 1.2
System Hardware Manual 6 - 21
7.3 Programming
10-03-01 : ETU Setup – Terminal Type (Circuit 1)
10-03-06 : ETU Setup – Terminal Type (Circuit 2)
Confirm that the PGD(2)-U10 ADP has defined the circuit type as either type
7 for External Ringer or 9 for ACIs. (If the PGD(2)-U10 ADP circuit had
previously been defined for another type of circuit, unplug the
PGD(2)-U10 ADP and plug it back in to reset the circuit type.)
10-05-01 : General Purpose Relay Setup
Define which relay circuits (5-8) on the PGD(2)-U10 ADP are used for
General Purpose Relays.
11-06-01 : ACI Extension Numbering
Assign extension numbers to ACI software ports. Select a number outside
of the normal extension number range.
Aspire S: ACI Ports 1-8
Aspire: ACI Ports 1-96

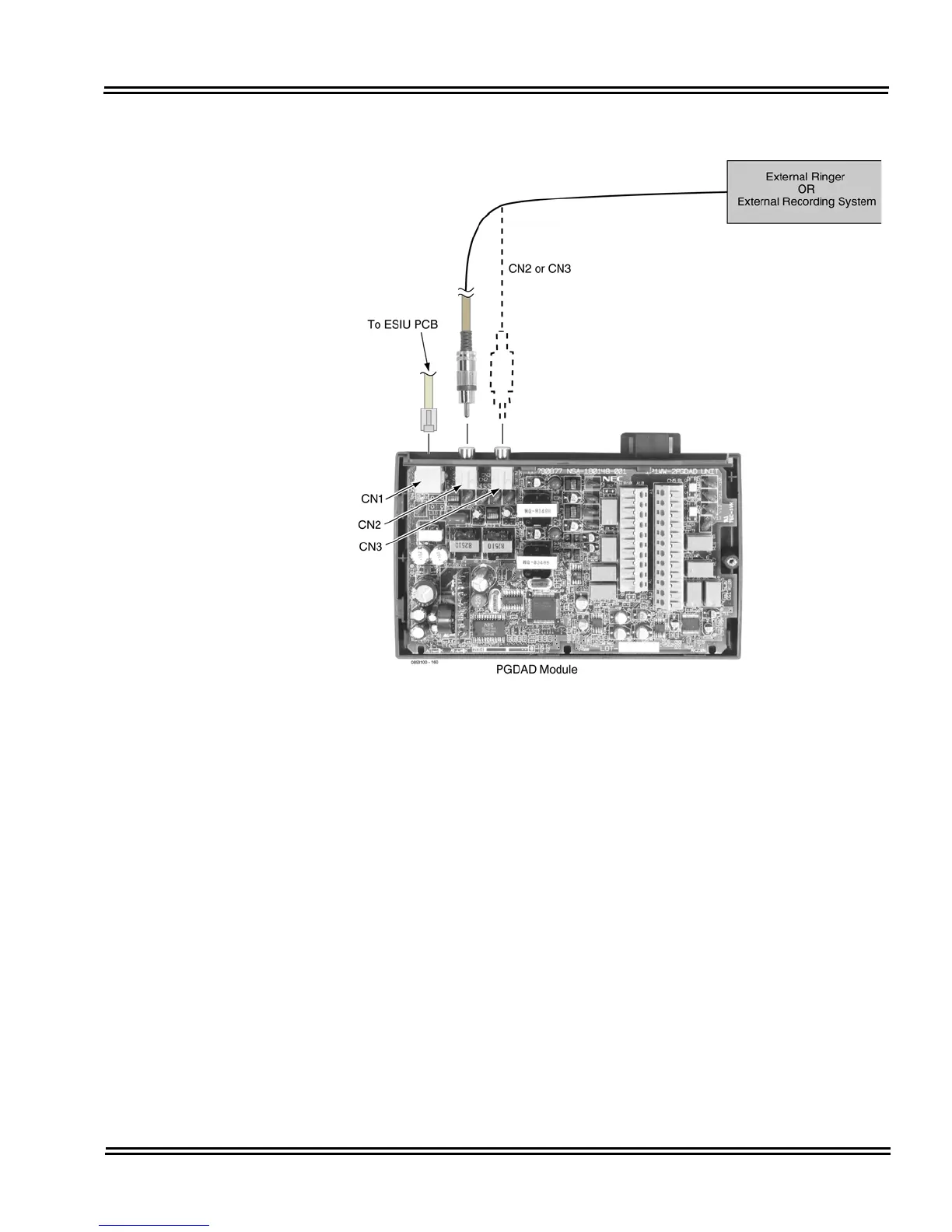

Figure 6-15 PGD(2)-U10 ADP Cable Connection
